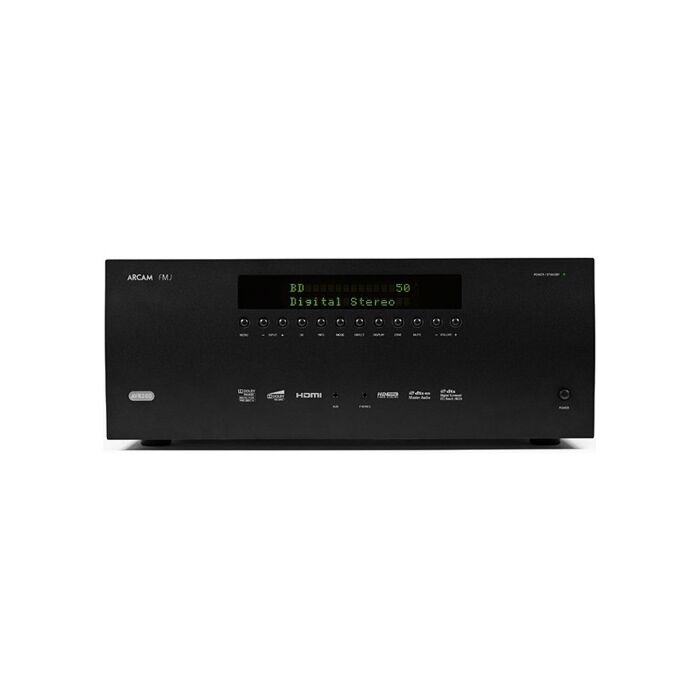

Arcam AVR360 AV Receiver

Regular Price: £1,399.00

Special Price: £748.00

Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

On offer is our ex-display Arcam AVR 360 in a black finish. This machine is in mint condition and looks and sounds the exact same as it did the day it was unboxed.

The Arcam AVR360 brings audiophile sound quality associated with Arcam to a lower price point, making the AVR 360 a very tempting but for those music lovers and movie fans who want to hear every last detail of the performance in either stereo or surround sound.

7 x 75W power amplifiers are coupled to a high performance stereo and multichannel pre-amp/ processor which is fully 3D compatible and HD ready. Network streaming of music files is enabled by the ethernet port on the rear panel.

Video Inputs

HDMI x5
Component video x3
S-Video x4
Composite video x4
Video Outputs

HDMI x1 - includes audio (see below)
Component video x1
Composite video (Zone 2) x2
Audio Inputs


HDMI x5
Coaxial Digital x4
Optical Digital x2
Line inputs (RCA/Phono) x6
Multichannel (8x RCA/Phono) x1
Front line in/digital optical x1 (3.5mm jack)
USB x1
Ethernet x1
Audio Outputs

HDMI x1 (including ARC - Audio Return Channel)
Pre-amp out (8x RCA/Phono) x1
Pre-amp out (Zone 2 RCA/Phono) x1
Headphones output (3.5mm jack) x1
Custom Install Connections

RS232 control input x1
iPod control port (for irDock)
12V trigger x2 (Zone 1 & 2, 12V, 100mA)
IR inputs x2 (Zone 1 & 2)
Supported Audio Decoding / Processing

Dolby TrueHD, Dolby Digital Plus
Dolby Digital EX
Dolby Digital
Dolby Volume
DTS-HD Master Audio
DTS, DTS96/24
DTS-ES (matrix & discrete)
Dolby Pro Logic IIx Movie, Music, Game
Dolby Pro Logic
DTS Neo:6 Cinema, Music
Supported USB/Ethernet Audio Formats

MP3
WMA
FLAC
AAC with DRM10 support
Analogue Inputs

Input sensitivity 1V-4V (user adjustable)
Input impedance 47Kohm
Signal to noise ratio (CCIR, 65W) -100dB
Power Amplifier (20Hz-20kHz at 0.1% THD)


Output power 90W p/c (2 channels driven)
Output power 75W p/c (7 channels driven)
THD at 3dB below max power < 0.02%
Residual noise & hum < 0.3mV
Pre-amplifier Output

Maximum level 6V RMS
Output impedance <50ohm
THD+N (20Hz-20kHz) -100dB
Analogue Video

Component video input signal/noise 85dB
Composite video input signal/noise 70dB
Headphones Output

Max output level 4V p-p
Output impedance <5ohm
Power Consupmtion

Maximum 1KW
Idle (typical) 100W
Standby <0.5W
Supplied Accessories

CR102 Eight page backlit learning remote
Setup microphone
Owners manual
Power cord
DAB/FM/AM Radio antennas
Weights

15.5Kg (34.2lbs) net
20.0Kg (44.1lbs) packed
Dimensions

Width: 435mm (17.3”)
Depth: 425mm (16.7”)
Height: 172mm (6.7”)
