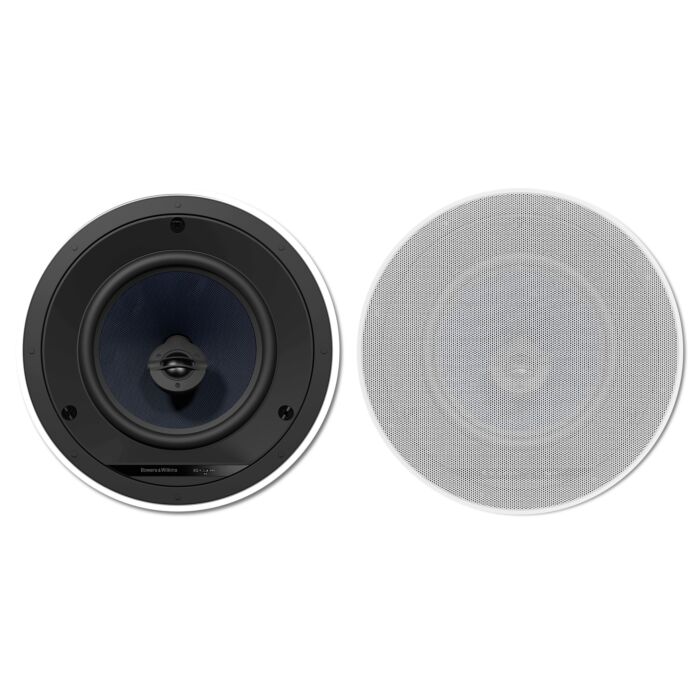

Bowers & Wilkins CCM683 In-Ceiling Loudspeakers


Click on the image to enlarge and zoom.

Free Gift - choose from a range of great products when you spend over £300

Be the first to review this product

Reserve & Collect in-store.
Contact us on 01432 354921 for more information.

Secure Shopping

Bowers & Wilkins are a well-known name in hifi and develop some of the most highly advanced traditional loudspeakers on the market today. It's with this prestigious reputation and the wealth of experience that comes with it, that Bowers & Wilkins are able to incorporate the same standard of outstanding sound quality into their in ceiling and in wall models.

The CCM683 is a true testament to the Bowers & Wilkins design philosophy, and features an unbeatably warm, accurate and immersive sound, all the while retaining a compact and almost invisible stature, right above you in the ceiling. The bass/midrange driver sits within a die-cast chassis, designed to provide additional rigidity, which in turn results in a much cleaner, faster and accurate bass response. The tweeter comprises of a 25mm aluminium dome, and is housed within a pivoting unit, allowing you to adjust off-axis treble response.

A three-point EQ switch is integrated to the speaker, so that you are able to manipulate the sound slightly depending on acoustic restrictions or application. The cone itself is comprised of high quality Kevlar, that sits neatly behind the discrete grille.


 Description 2-way in-ceiling system
 Drive Units 1x ø25mm (1 in) Nautilus™ swirl
loaded aluminium dome tweeter
1x ø200mm (8in) blue Kevlar®
cone bass/midrange
 Frequency Range (-6dB) 35Hz – 50kHz
 Recommended Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m)  88 dB
 Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C
