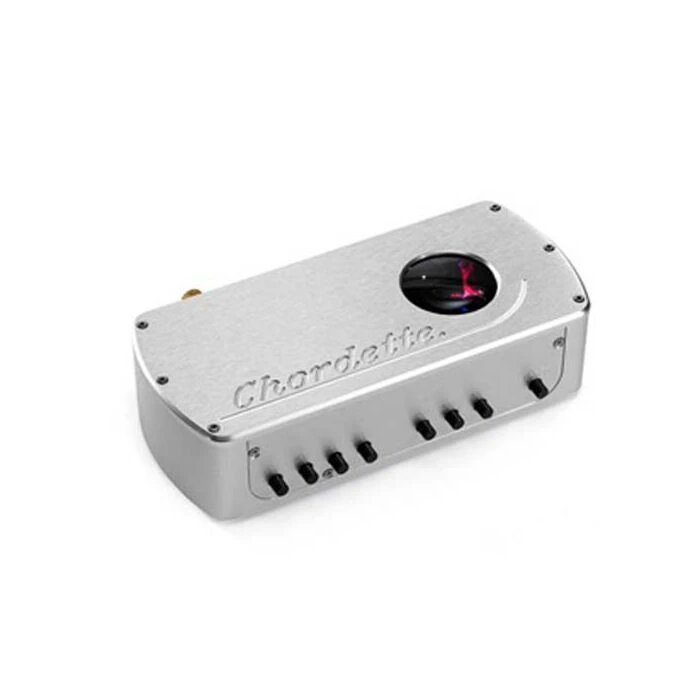

Chord Electronics Chordette Dual Phono Preamplifier


Click on the image to enlarge and zoom.

This product is no longer available

Chord Electronics Chordette Dual Phono Preamplifier

The Chordette Dual phono preamplifier has been designed and engineered to provide a clean, high level boost amplification and frequency shaping needed to match the low level output from high quality moving coil cartridges.

The Dual features input impedance and gain options to allow you the ability to match the preamplification perfectly to the cartridge being used, in turn enabling you to reveal the true potential of your favourite vinyl records.

The on-board DAC with USB output allows you to record your vinyl playback experience in to your PC. This means that you are able to preserve a digital copy of your favourite vinyl recordings, enabling you to listen to them on your iPod or music player, or any other digital domain.


 Input Impedance 30 ohms – 47K ohms, 50pF – 200pF
 Input Noise 1.1nV/Hz
 Max Output Voltage 10V rms
 Equalisation 0dBV – 75dBV RIAA curve
 Gain Range 60dBV,65dBV,70dBV,75dBV
 Rumble Filter -24dB per octave below 50Hz
 Input 1 x RCA Phono Pair
 Output 1 x USB (B)
1 x RCA Phono Pair
1 x Optical TOSLink Monitor
 USB ADC Output 44/48KHz, USB 2.0 Compliant
 Power Supply 12V 3A 2.1mm connector.
Centre Pin Positive.
100V – 240V 50/60Hz 1A wall adapter supplied
 Dimensions in mm (Width x Height x Depth) 160 x 70 x 40mm (Width x Height x Depth)
Weight 0.4kg
