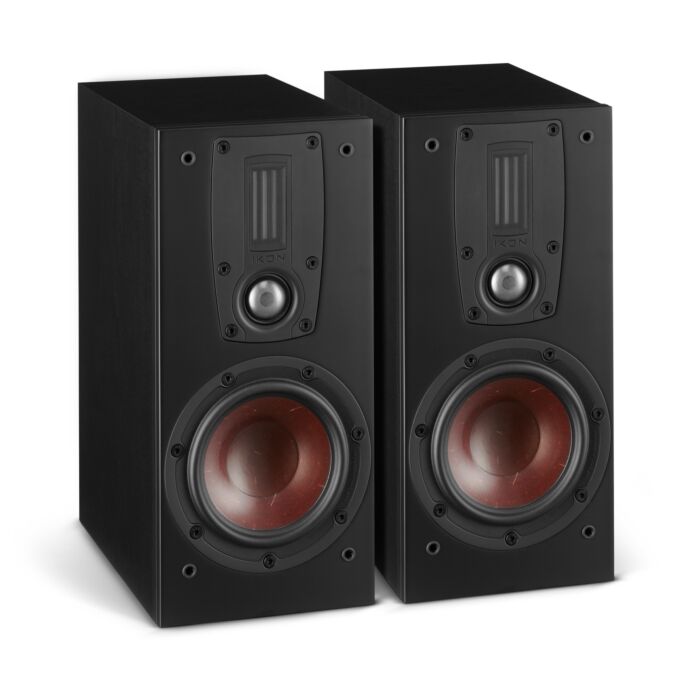

DALI Ikon 1 (Mk 2) Bookshelf Loudspeaker


Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

The IKON 1 MK2 is a bookshelf/stand-mount loudspeaker, designed to cater for small to medium sized acoustic environments. The Ikon 1 works exceptionally well in both two-channel stereo set-ups, and as front/rear units in a complete surround sound system for home cinema applications.

Even when pushed to high volumes, the Ikon 1 retains a detailed and astonishingly deep bass response, thanks to its wooden fibre 5" mid/woofer driver. This driver has been designed to integrate flawlessly with the hybrid tweeter unit. The Ikon 1 Mk II delivers the same warmth, detail and authenticity one would expect from the original Ikon 1's, or from any loudspeaker engineered and designed by DALI.

One of the upgrades the Mk 2 version has over the original Ikon 1, is that the bass port is now located at the back of the unit, instead of the front. Because of this, it has been possible to design speaker slightly lower than its predecessor, but retain and improve upon the same level of warmth clarity found in the original Ikon 1.


 Speaker Type  Front
Surround Sound
 Frequency Range (+/-3 dB) 45Hz-30kHz
 Sensitivity (2,83 V/1 m)  86dB
 Nominal Impedance   6Ω
 Maximum SPL 105dB
 Recommended Amplifier Power 25-100 watts
 Crossover Frequency 2.5-14kHz
 High Frequency Driver 1 x 28 mm  Soft Textile Dome
17 x 45mm Ribbon
 Low Frequency Driver 1 x 5"  Wood Fibre Cone
Enclosure Type  Bass Reflex
 Bass Reflex Tuning Frequency 41Hz
Connection input Single Wire
Magnetic Shielding No
Recommended Placement Shelf
Dimensions with Base

H: 327mm
W: 150mm
D: 260mm

Weight 4.8kg
