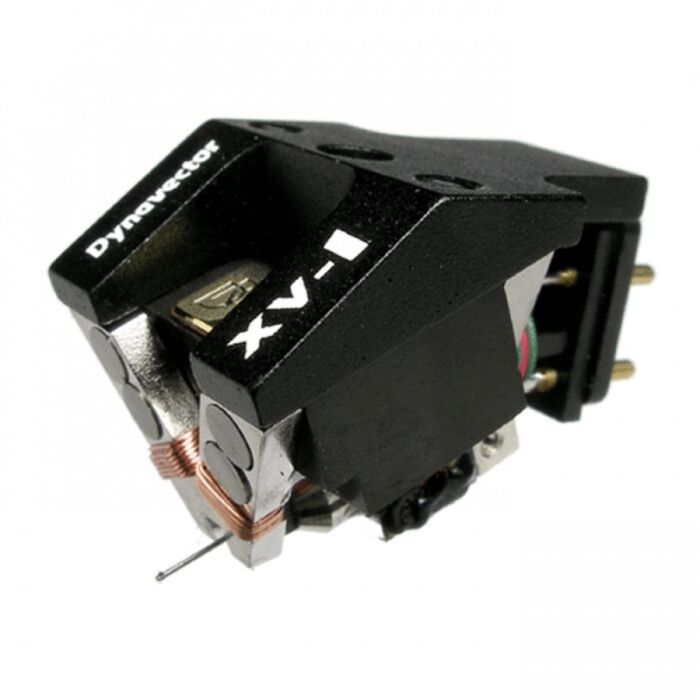

Dynavector DRT XV-1S MC Cartridge


Click on the image to enlarge and zoom.

Free Gift - choose from a range of great products when you spend over £300

Be the first to review this product

Free Delivery

Secure Shopping

The DRT XV-1s is the latest upgrade from the Dynavector XV-1. The XV-1 is a strong credit to the vinyl record, showing us that any digital format is capable of being made to look the fool in terms of sound quality when compared to what the DRT XV-1 is able to produce.

At a glance, this was always different from all cartridges that have gone before. Its magnetic circuit comprises 8 small ALNICO magnets. The magnetic path is divided into two - In the magnetic gap, a specially designed magnetic flux equalizing piece is placed. On the front yokes, magnetic stabilizing coils are wound. By this special combination, the magnetic field becomes widely homogeneous and more linear than the conventional magnetic design that is common in existing MC cartridges.


 Type Low output moving coil cartridge with
multi Alnico magnets and the Flux damper
Output Voltage  0.3mV (at 1KHz, 5cm/sec.)
 Channel Separation 30 dB (at 1KHz)
 Channel Balance  1.0 dB (at 1KHz)
                     Frequency Response                     20 - 20,000Hz (± 1dB)
 Compliance 10 x 10-6 cm/dyn
Tracking Force  1.8 - 2.2 grams
 Impedance R=6 ohms, L=18 micro Henry
 Recommended load
> 30 ohms
Cantilever  6mm length 0.3 mm dia. solid boron
 Stylus tip  PF Line contact shape, stylus radius: 7 x 30 micron
Weight 12.6 grams
