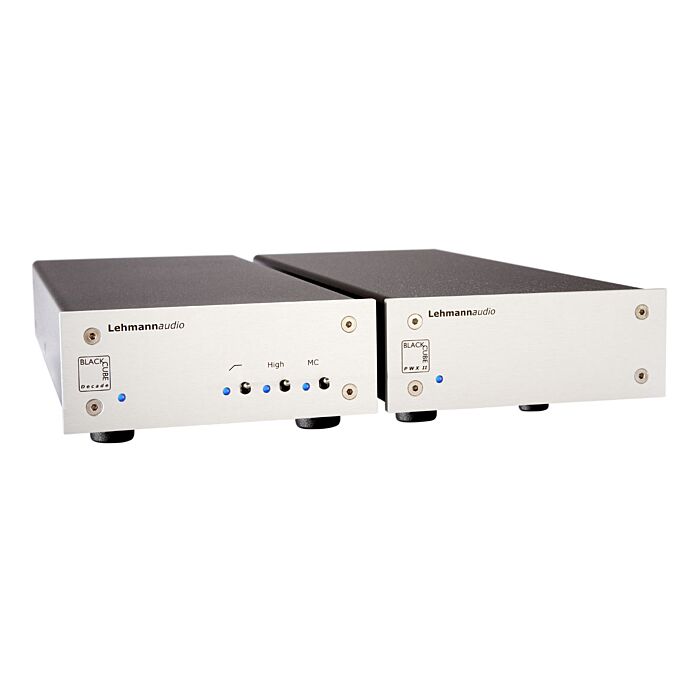

The Lehmann Audio Decade is a superb phono stage that fills the gap between the Black Cube SE and Lehmannís reference phono stage. The Decade consists of two identical cases, separating the audio section from the power supply, providing excellent isolation and superb audio performance.
Featuring passive RIAA equalization between two linear gain stages, discrete Class A output stage without global negative feedback, PWX II (with supply outlets for two audio sections) and front switchable gain and soft bass roll-off filter this is a serious piece of equipment that needs to be heard to be fully appreciated.
- The passive filter network between two linear gain stages realized with high precision MKP caps (Epcos)
- Several resistive and capacitive loads as standard
- Front switchable gain (36dB - 66dB) and soft bass rolloff (6dB/oct. 40Hz)
- Onboard slot for custom impedance
- Zero global feedback Class A output stage technically identical with the highly acclaimed Black Cube Linear.
- High quality gold plated pcb mount RCA connectors for audio.
- Neutrik connector with gold plated contacts for supply connection (as with the Silver Cube).
- Face plate anodized aluminium - black or silver
Input Stage Dual-Mono Microphone Preamp Chip,
Sensitivity for Output Level 775 mV/ 0 dB MM: 3.8 mV/1 kHz
MC: 0.38 mV/1 kHz
Max Input Level (1 kHz) MM: 45 mV
MC: 4.5 mV
Gain Settings 36dB, 46dB, 56dB, 66dB Max. Gain 66dB Signal to Noise Ratio
MM: 78 dB
MC: 69 dB
Channel Separation > 80 dB at 10 kHz Internal Impedances 47kΩ, 1kΩ, 100Ω (Selectable) Custom Impedance Yes, Via Onboard Slot Output Impedance 5Ω Input Capacitance 47 pF to 1,370 pF Soft Bass Roll-off Filter Yes - Toggle Switch On Face Plate High Gain Yes - Toggle Switch On Face Plate RIAA Filter Caps MKP Bass Coupling After RIAA MKP Second Gain Stage Dual Mono
Burr Brown OPA 134
Discrete Output Buffer
Zero Global Feedback
Yes (Bipolar Class A) Bass Filter 50 Hz, 6 dB/oct. Power Consumption App 13VA. Dimensions Decade: 110 x 280 x 50mm
PSU: 110 x 280 x 50mm
Weight Decade: 0.87kg
