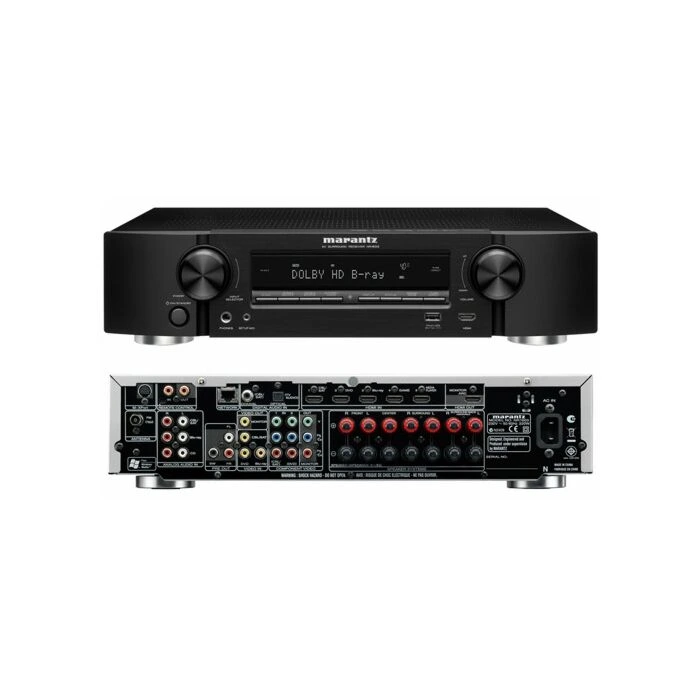

The new Marantz NR1603 AV Receiver has seven channels of 50W power to create dramatic surround sound effects in your living room. It's slim profile allows easy placement within your AV cabinet, whilst the myrad features offer all you could wish for in home entertainment. Six HDMI inputs and 1 out gives great connectivity to your audio and video sources, and a front panel mounted HDMI input makes camcorder or games console connection ultra convenient.
Audio streaming from your home network is simple thanks to the ethernet connection on the rear panel, and Apple Airplay offers an alternative streaming method for all of your iDevices.
Audessey room correction via the supplied microphone and interactive GUI ensures that your home ciema surround sound system is perfectly setup.
-
Multichannel Surround
THX Ultra II / Select II -
THX Surround EX -
DTS HD Master / DTS 5.1 / DTS ES / DTS 96/24 o / o / o / o
Dolby Digital Plus / Dolby TrueHD / Dolby Digital EX / DPL IIz o / o / o / o
Audyssey DSX -
Dolby Virtual Speaker / Neural Surround o / o
Multichannel Stereo o
Dolby Headphone -
Compressed audio Enhancer: MDAX / MDAX2 - / o
Sound Enhancements
Current Feedback Topology -
Hyper Dynamic Amplifier Modules (HDAM) -
Pure Direct o
Power Transformer: Toroidal / EI - / o
High Grade Audio Components -
Chassis: Copper plated / Metal - / o
Network
DLNA Certified o (v1.5)
UPnP Certified -
Network Audio: MP3 / WAV / AAC / FLAC / WMA o / o / o / o (HD) / o
Network static video (JPEG) o
Network Video -
Integrated webserver -
Internet Radio: direct / external media player o / o
vTuner / Napster* / last.fm* o / - / o
WiFi: integrated / external access point -
Ethernet o
IP Control o
Apple APP control by iPhone/iPod touch o
AirPlay Music Streaming o
Others
Bluetooth audio via RX101 optional
Auto speaker setup by microphone Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume o / o
Video conversion CVBS > HDMI; Comp > HDMI
Interlace / progressive conversion o
Analogue to HDMI scaling o
HDMI to HDMI scaling o
Videoprocessing o
Picture adjust / Noise reduction o / o
HDMI path through on stand-by o
Deep Color pass through o
3D video pass through o
Audio Return Channel o
CEC o
T.B.C. - time base correction -
Front panel cursor control -
On Screen Display: GUI / OSD o / -
Variable cross over o
Lip sync control o
Multiroom zones o
Front Flap -
Discrete RC coding (Main- / Multiroom) o / -
Setup Wizard o
Inputs/Outputs
Composite In / Out 3 / 1
S-Video In / Out - / -
Component In / Out 2 / 1
HDMI In / Out (version x.x) 5+1 / 1
Multi-Room Video Out: Video / Component - / -
Analogue In/out 3 / 0
Balanced In / Out -
Phono (MM) In -
Digital Optical In/Out 1 / 0
Digital Coaxial In / Out 1 / 0
Multi-Room Out: analog / digital - / -
Multichannel Pre Out / Main In o (2.1) / -
Subwoofer Out 1
7.1 multichannel input -
M-XPort for RX101 o
Speaker Terminal: Gold plated screw / regular screw - / o
Number of terminals 7
Speaker A / B o
Height speaker terminal Speaker B or Height
Bi-amp drive (5.1 ch setting) / Speaker C o / o
Multi-Room Speaker Terminal o
Marantz remote bus o
IR Receiver In / Emitter Out - / -
IR Flasher In -
Network: (IP-control / update) o / o
RS232C (control / update) - / -
DC Triggers -
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - / - / - / o / -
USB Audio / Made for iPod / Works with iPhone o / o / o
Specifications
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 50 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 60 W
70% Guarantee -
Audio Signal to Noise Ratio 98 dB
FM Tuner o
General
Available colors: Gold / Silver / Black / Silver-Gold - / - / o / o
Metal Front Panel -
System Remote Control RC017SR
Pre-programmed / Learnable / LCD Display - / - / -
Backlit key / glow key - / o
Power Consumption in W 220
Standby Consumption in W 0.2
Detachable Power Cable o
Maximum Dimensions (W x D x H) in mm 440 x 367 x 105
Weight in kg 8.3
-
-
