Marantz PM6004 - Ex Display Model

Regular Price: £329.00

Special Price: £209.00

Click on the image to enlarge and zoom.

This product is no longer available

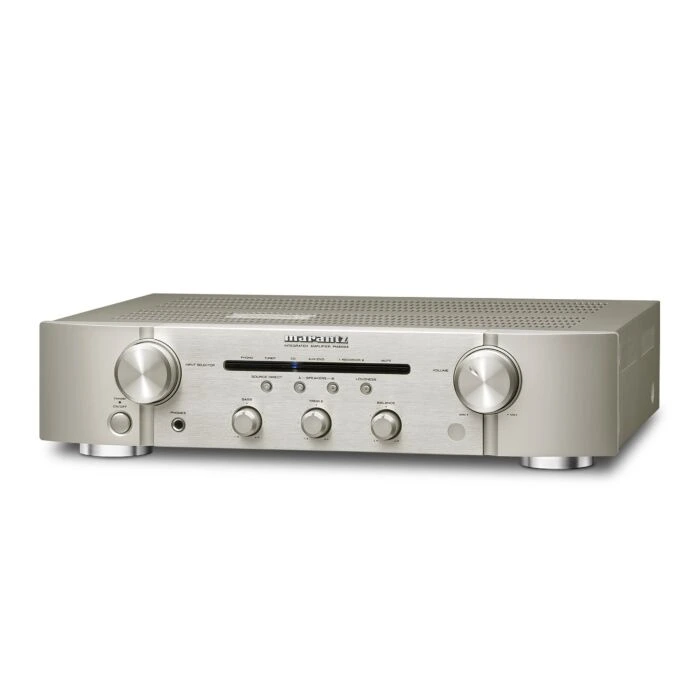

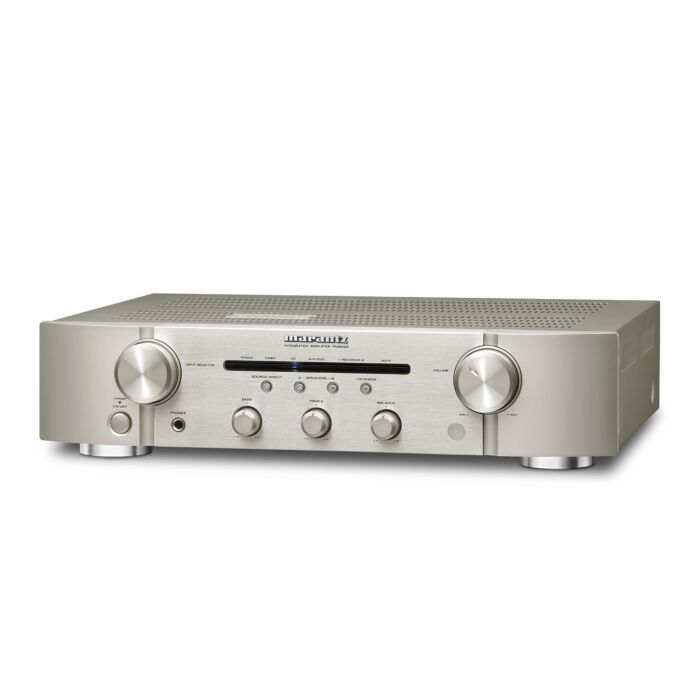

Currently on offer is our display model of Marantz's PM6004 in a silver finish. This unit is in mint condition and looks as good now as it did the day it was unboxed. Original packaging included.


The new Marantz PM6004 integrated amplifier builds upon the success of it's award winning predesessor the PM6003, and now has an even more refined and transparent sound quality. This has been achieved by making both the preamplifier and current feedback power amplifier sections of the PM6004 fully discrete, in other words, no integrated circuits are used at all, all of the amplification is achieved using discrete transistors. This has allowed Marantzengineers to tailor the sound quality much more, which has resulted in a substantial upgrade in musical perfromance.



Power output into 8Ω is 45W rising to 60W into 4Ω loads, which is plenty for most domestic audio systems. The toroidal transformer has been fitted with a hum reducing screening ring to reduce noise to insignificant levels, whilst the customised resevoir capacitors and high current bridge rectifiers have also been re-engineered for more current capability than in the previous model.



Six audio inputs including a moving magnet phono stage are provided, making connection with your other hifi components via gold plated RCA phono inputs. Twin loudspeaker binding posts enable the connection of two pairs of speakers, or easy bi-wiring of a single pair of speakers. Bass and treble tone controls give you the ability to fine tune the sound to your particular taste, plus a source direct control gives the shortest signal path through the PM6004 for best overall sound quality.



An infra-red remote control handset completes the package of this refined amplifier, which will surely be as sought after as the outgoing PM6003.



FEATURES PM6004
Channels 2
Current Feedback Topology o
Phono EQ: Standard / Current Feedback / Constant Current Feedback o / - / -
HDAM version o
Power Transformer: Toroidal / El o / -
High Grade Audio Components o
Customised Components o
Symmetric PCB Layout -
Aluminium extrusion heat sink o
Copper plated chassis -
Tri Tone Control (Bass / Mid / Treble) -
Balance / Bass / Treble / Loudness o / o / o / o
OTHERS
Linear Drive Power Supply o
CCNE -
Shottky diodes o
Input buffer amp (all inputs / CD only) - / -
Solid Heat Sinks o
System block shielding: Copper / metal / none - / - / o
Double Layer Bottom Plate -
Source Direct o
Power Amp direct -
Standby Mode o
INPUTS/OUTPUTS
Audio Inputs 6
Phono Input: MM / MC o / -
Audio Outputs 2
Balanced In / Out - / -
Pre-out / Main-in - / -
Power Amp Direct IN -
Gold Plated Cinch o
Speaker A / B o
Speaker Terminals: Metal (Gold) Screw
Number of terminals 4
D-Bus o
Floating Control Bus (3.5 mm mono jack x 2) -
Headphone Out o
iPod input (direct / docking station) - / o
SPECIFICATIONS
Power Output (8 / 4 Ohm RMS) 45 W / 60 W
Power Output (8 / 4 Ohm DIN) - / -
Power Output (8 / 4 Ohm IHF) - / -
Bridged Power Output (8 Ohm RMS) -
Frequency Response 10 Hz - 70 kHz
Total Harmonic Distortion 0.07 %
Damping Factor 100
Input Sensitivity: MM 2.2 mV / 47 kOhm
Input Sensitivity: MC -
Signal to Noise Ratio: MM/MC 83 dB / -
Input Sensitivity: High level 200 mV / 20 kOhm
Input Sensitivity: Balanced High level -
Signal to Noise Ratio: High level 102dB(2V input)
Input Sensitivity: Power Amp Direct IN -
Signal to Noise Ratio: Power Amp Direct IN -
GENERAL
Available colors: Gold / Silver / Black / Silver-Gold - / - / o / o
Metal Front Panel o
Power Consumption in W 150
Standby Consumption in W 0,2
Auto Power off o
Detachable Power Cable o
Remote Control RC003PM
System Remote Function o
Maximum Dimensions (W x D x H) in mm 440 x 366 x 105
Weight in kg 7.4
EAN
EU PM6004/N1B Black 4951035044919
PM6004/N1SG Silver-Gold 4951035044926
UK PM6004/T1B Black 4951035044933
PM6004/T1SG Silver-Gold 4951035044940
