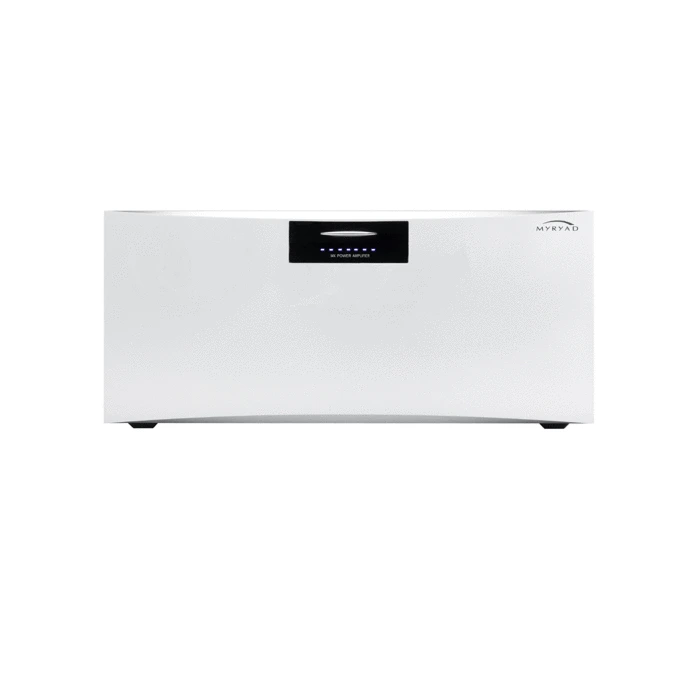

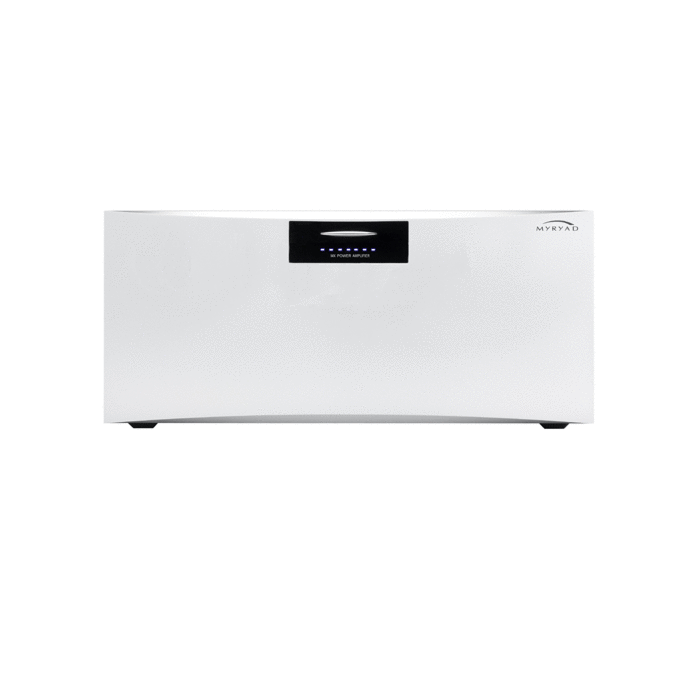

Myryad MXA-7150 7x 150Wpc Power Amplifier

Free UK Delivery

Discontinued


£3,270.00

Sorry, This product is no longer available

9mm Anodised bead blasted aluminium fascia 7x 150Wpc 8ohms Up to 7 modules can be installed in one chassis, in any combination of 1x 150W and 2x 80W modules, so one fully loaded chassis can deliver 7x 150W or 14x 80W or any combination between Five separately-regulated power supplies for each amplifier channel Each 150W module uses Vishay bulk-foil and 0.1% tolerance feedback resistors Each module has its own processor monitoring temperature, output current and output DC Smart My-Link input/output connection to link to other Myryad equipment. Available in Anodised Silver and Black finishes Please call if you would like to order separate modules Specifications 1x 150W Power Amplifier Module Frequency Response °æ0.2dB (20Hz - 20kHz, -2dB @ 96kHz) Continuous rated power output: Stereo 8ߟ 150W 4ߟ 230W Total Harmonic Distortion 0.02% @ 80% rated power (20Hz - 20kHz) Signal to Noise Ratio (A-weighted, ref 150W) >118dB Input Sensitivity (ref. 150W output) 1.23V Input Impedance 20kߟ / 440pf Dimensions Width 54mm Height 168mm Depth 429mm Weight 4.8kg each 2x 80W Power Amplifier Module Frequency Response °æ0.2dB (20Hz - 20kHz, -2dB @ 96kHz) Continuous rated power output: Stereo 8ߟ 80W 4ߟ 120W Total Harmonic Distortion 0.02% @ 80% rated power (20Hz - 20kHz) Signal to Noise Ratio (A-weighted, ref 800W) >116dB Input Sensitivity (ref. 150W output) 900mV Input Impedance 60kߟ / 440pf Dimensions Width 54mm Height 168mm Depth 429mm Weight 4.8kg each

1x 150W Power Amplifier Module
Frequency Response     ±0.2dB (20Hz - 20kHz, -2dB @ 96kHz)
Continuous rated power output: Stereo     8Ω 150W
4Ω 230W
Total Harmonic Distortion     0.02% @ 80% rated power (20Hz - 20kHz)
Signal to Noise Ratio (A-weighted, ref 150W)     >118dB
Input Sensitivity (ref. 150W output)     1.23V
Input Impedance     20kΩ / 440pf
Dimensions     Width 54mm
Height 168mm
Depth 429mm
Weight     4.8kg each

2x 80W Power Amplifier Module
Frequency Response     ±0.2dB (20Hz - 20kHz, -2dB @ 96kHz)
Continuous rated power output: Stereo     8Ω 80W
4Ω 120W
Total Harmonic Distortion     0.02% @ 80% rated power (20Hz - 20kHz)
Signal to Noise Ratio (A-weighted, ref 800W)     >116dB
Input Sensitivity (ref. 150W output)     900mV
Input Impedance     60kΩ / 440pf
Dimensions      Width 54mm
Height 168mm
Depth 429mm
Weight     4.8kg each
