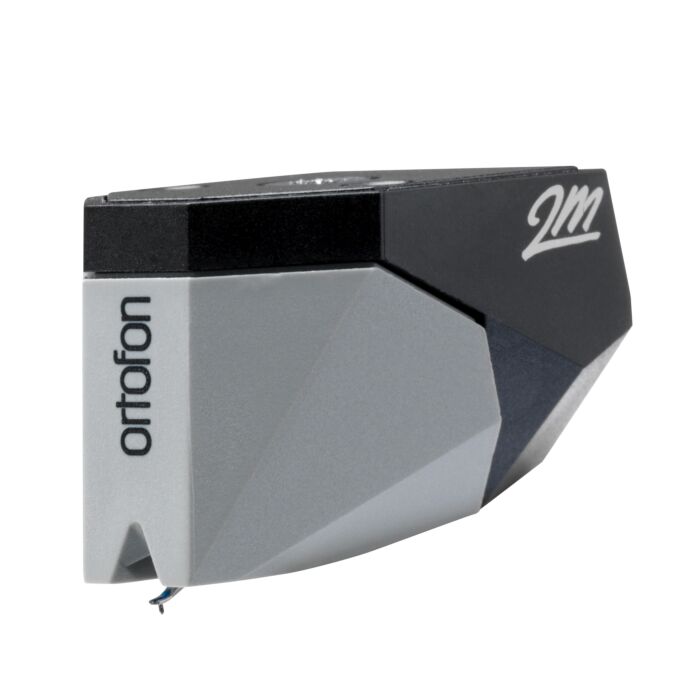

Ortofon 2M 78 MM Cartridge


Click on the image to enlarge and zoom.

Free Gift - choose from a range of great products when you spend over £300

Be the first to review this product

In stock Free Delivery

Secure Shopping

The 2M Series of cartridges from Ortofon have been designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.

The pre-existing range of 2M cartridges have rapidly been established as a reference point for all good moving magnet cartridges. From the introductory Red, through to the high-end Black; 2M is now a go-to name in moving magnet technology.

2012 sees Ortofon open up new markets within the same design principle of 2M. The 2M 78 and 2MMono offer users of older, rare vinyl a higher-quality playback medium than had previously been available.

The 2M 78 features an improved True Mono engine, which provides a high level of sonic accuracy, as well as expertly cut Spherical diamond that is perfect for playback of 78 rpm records (which require a larger stylus profile).


Output Voltage
(at 1kHz, 5cm/sec)
Ortofon 2M 78
Ortofon 2M Mono
Frequency Range
(at -3dB)
20 Hz - 22 kHz
Frequency Response
20Hz - 20kHz
+3 / -1dB
Tracking Ability
at 315Hz
Typically 70μm
18μm / mN
Stylus Type Spherical
Stylus Tip Radius R 65μm
Tracking Force Range 1.6 - 2.0g (16 - 20mN)
Tracking Force
1.8g (18mN)
Tracking Angle 20º
Internal Impedance
DC Resistance
Internal Inductance  300mH
Load Resistance
Load Capacitance
150 - 300pF
Cartridge Colour Body
/ Stylus
Black / Grey
Cartridge Weight 7.2g
Replacement Stylus Unit Stylus 2M 78
