Ortofon are a Danish manufacturer of high quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.

A Moving Magnet phono cartridge is comprised of a tiny magnet, located at the end of the cantilever of the stylus that sits between two coils. One coil caters to the left aspect of the music, while the other is for the right - this allows for the stereo sound. This magnet vibrates between the two coils and induces a small electrical current within them in the process. Because the magnet is so small, it needs less tracking/downward force to correctly manoeuvre between the grooves of a vinyl record. A Moving Iron cartridge makes use of essentially the same construction, but swaps the magnet for a tiny piece of iron or other light-weight and ferrous alloy. The iron is lighter and so reduces the necessary tracking force even further.

Moving Magnet is the most common type of phono cartridge, so many integrated amplifiers now feature a Moving Magnet phono stage and many manufacturers, such as Ortofon design and construct a wide range of MM cartridges with varying levels of quality. While every MM cartridge makes use of this fundamental construction, the way that this is implemented within a cartridge varies as do the materials used, allowing for differing qualities and a unique sound-signature depending on the brand and model.

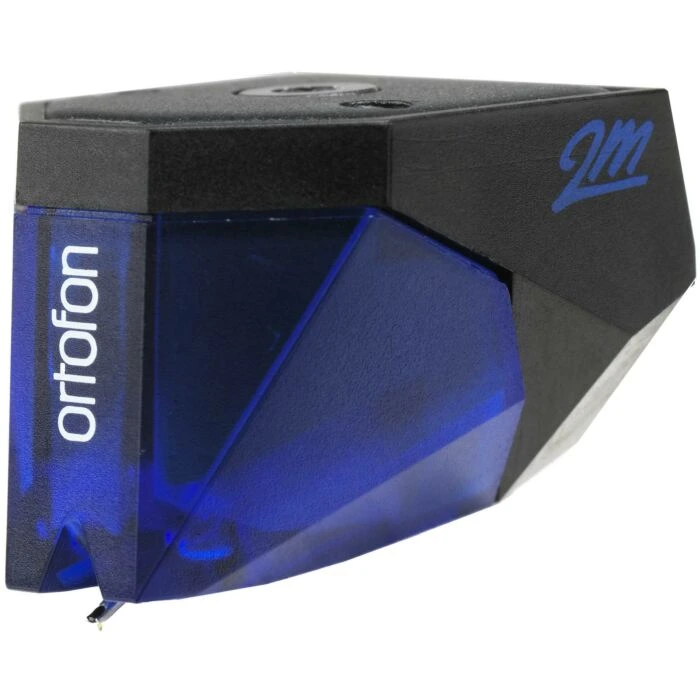

With a nude elliptical stylus, the Ortofon 2m Blue moving magnet cartridge can deliver superb stereo sound from your vinyl record collection. Great tracking and minimal distortion is assured, whilst the low resonance body keeps colouration of the music to very low levels. A flat frequency response is produced thanks to Ortofon's split pin generator system. Designed for easy mounting and alignment, a superb music making cartridge.



 Output voltage at 1000 Hz, 5cm/sec. 5.5mV
Channel balance at 1 kHz  1.5dB
 Channel separation at 1 kHz 25dB
 Channel separation at 15 kHz 15dB
Frequency range at - 3dB  20Hz - 25,000Hz
 Frequency response FIM distortion at recommended                                 20-20.000 Hz + 2/ - 1 dB
 Tracking ability at 315Hz at recommended tracking force *)  80 µm
 Compliance, dynamic, lateral 20 µm/mN
 Stylus type Nude Elliptical
 Stylus tip Radius r/R 8/18 µm
 Tracking Force Range  1,6-2,0g (16-20 mN)
Tracking force, recommended 1,8 g (18 mN)
Tracking Angle 20°
Internal impedance, DC resistance 1.3 kOhm
Internal Inductance 700 mH
Recommended Load Resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour Black/Blue
 Cartridge weight 7.2g
