Ortofon Quintet Blue Cartridge

Ortofon Quintet Blue Cartridge

Free UK Delivery

In Stock

£335.00
Payments
OR
Description

Details

Ortofon are a Danish manufacturer of high quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable

Moving Coil cartridges feature an inverted version of the Moving Magnet design. Instead of a magnet sitting on the end of the cantilever between two coils, the coils are attached the cantilever and a magnet is placed near them. Because space within the cartridge at this level is extremely limited, the coils are made from an exceptionally fine wire. The coils tiny size results in a very low output.

While Moving Magnet cartridges tend to offer a more relaxed, warmer sound, Moving Coils are known for offering a better level of detail and a wider stereofield than the Moving Magnet alternatives. Moving Coil Cartridges will often require an external phono-stage specific to their construction. Ortofon are committed to delivering the best quality cartridges for your turntable, in an effort to offer the most refined and exquisite analogue sound quality. Ortofon have introduced around 100 different moving coil cartridge models since 1948, with the newest range being the colourful and capable Quintet Series.

Ortofon are committed to delivering the best quality cartridges for your turntable, in an effort to offer the most refined and exquisite analogue sound quality. Ortofon have introduced around 100 different moving coil cartridge models since 1948, with the newest range being the colourful and capable Quintet Series. Ortofon believe that the new Quintet range are more than qualified to be the worthy successors to the vast line of high-quality turntable cartridges they've developed previously, and just be consulting the specifications - its not hard to see why. The Quintet series has been described as possessing its 'own individual sonic expression', and each of the five models together represent the team of five classic models.

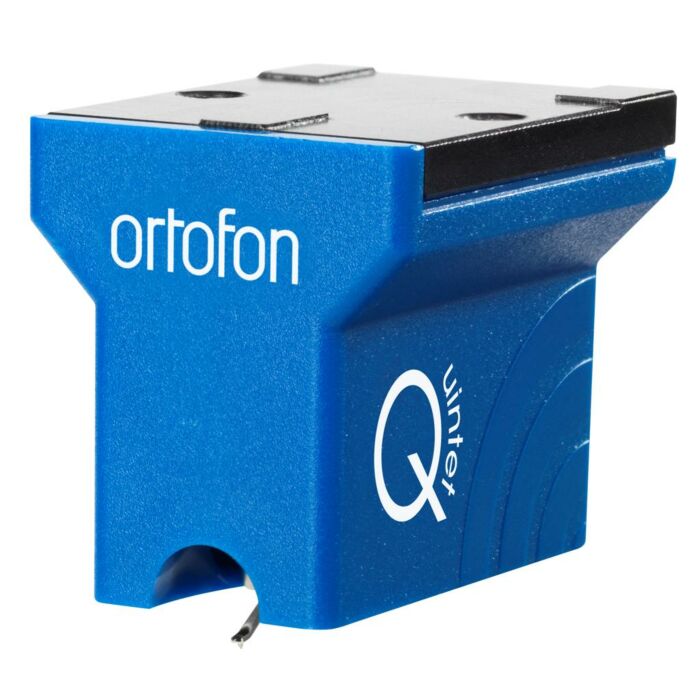

The Quintet Blue moving coil cartridge from Ortofon is extremely homologous, and has been designed to provide a smoother sound reproduction than its entry-level brother, the Quintet Red, while offering a moderate strength in dynamic when compared to its superior, the Quintet Bronze. The Blue utilises a nude Elliptical diamond, which is mounted upon an aluminium cantilever, and brings a more spacious sound, topped with more depth and detail than other cartridges at its price point. The Blue will bring any genre or style of music to life, but truly thrives within a rhythmic domain.

Specification



 Output Voltage
(at 1kHz, 5cm/sec)
0.5mV
Channel Balance
at 1kHz

 <1.5dB
 Channel Separation
at 1kHz
>21dB
 Channel Separation
at 15kHz
>14dB
 Frequency Range
(at -3dB)
20 Hz - 25 kHz
 Frequency Response
20Hz - 20kHz
± 2.5dB
 Tracking Ability
at 315Hz
70μm
 Compliance,
Dynamic,
Lateral
15μm / mN
 Stylus Type Nude Elliptical
Stylus Tip Radius r / R  8 / 18μm
 Tracking Force Range  2.1 - 2.5g (21 - 25mN)
Recommended
Tracking Force
2.3g (23mN)
Tracking Angle 20º
Internal Impedance
/ DC Resistance
Recommended Load
Impedance
>20Ω
Cartridge Body Material ABS/Alu
Cartridge Colour Blue
Cartridge Weight 9.0g
