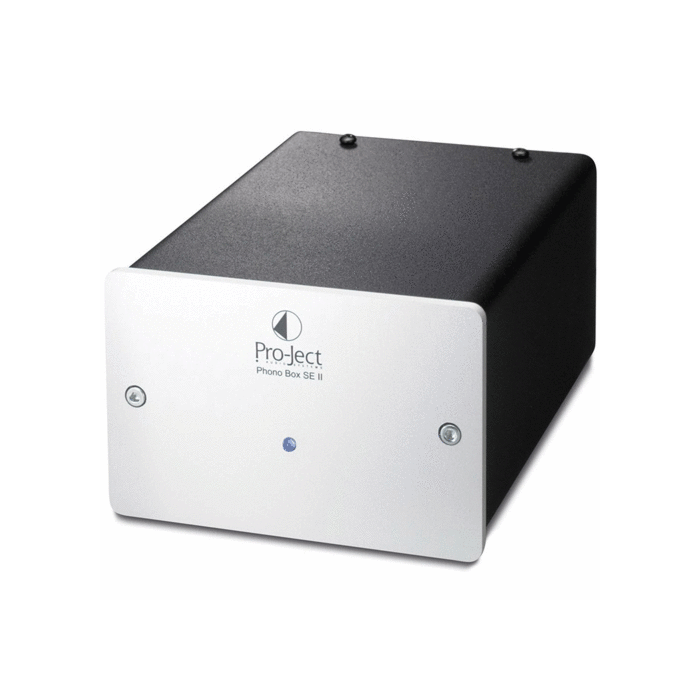

Project Phono box SE II MM/ MC phonostage

£349.00

Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

Project Phono box SE II caters for both moving magnet and moving coil cartridges with equal ease. It's internal circuitry is more sophisticated than it's smaller non-SE brother, whilst the outboard power supply is of much higher quality, resulting in better sound quality. Battery operation can be selected which can yield greater sound quality still. With it's dual mono circuitry and low noise IC's this is a superior phono stage for those who take their vinyl replay seriously.
Specifications
Input impedances, MM 120, 220, 340 and 440pf/47kohm
Input impedances, MC 17, 18, 20, 22, 69, 100 and 220ohms/120pF
Output voltage 300mV/1kHz at 3mV/1kHz (MM input)
Gain, MM 40dB
Output voltage 300mV/1kHz at 0,3mV/1kHz (MC input)
Gain, MC 60dB
Noise floor, MM 95dB (100dB - A weighted)
Noise floor, MC 75dB (80dB - A weighted)
THD MM 0,03%
THD MC 0,1%
RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,3dB
Subsonic filter at 18Hz with 24dB/octave
Outboard power supply 16V/1.000mA AC, suitable for your country's mains supply
  DC operation with battery
Power consumption 16V/180mA AC
DC power source from ±12 to ±18V DC
Dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm
Weight 1.050g without power supply
