Quad 23L Classic stereo speakers

Quad 23LQuad 23L

More Views

  • Quad 23L
  • Quad 23L
  • Quad 23L
  • Quad 23L

Click on the image to enlarge and zoom.

This product is no longer available

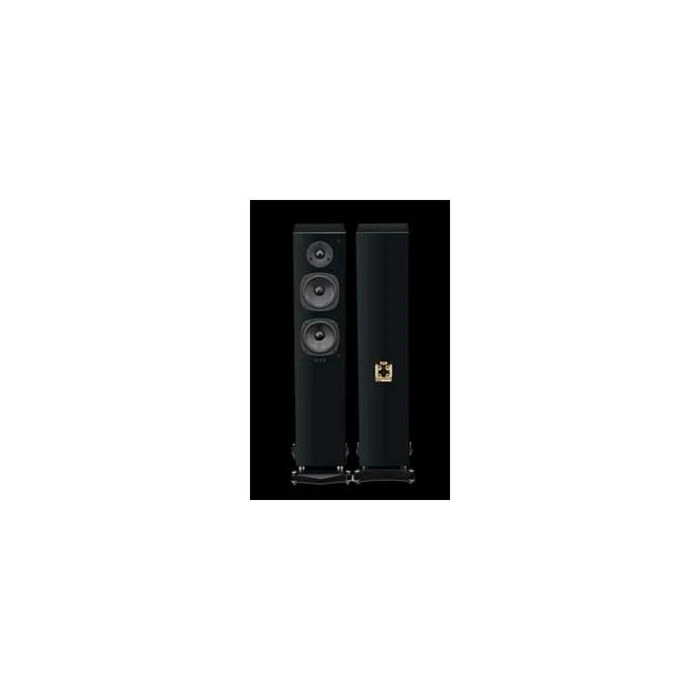

The new Quad 23L floorstanding speakers are a handsome 3-way bass reflex design with 200W power handling and wide band frequency response of 40Hz to 23kHz, ideal for medium to large listening rooms.

The kevlar bass and midrange drivers are linear motion designs, giving very low distortion, whilst the waveguide dome tweeter has excellent dispersion, giving a wide sound stage with great detail.

Cabinet resonance has been banished thanks to the multi-layer wood design with internal bracing and damping, ensuring vocals are reproduced with superb clarity. The linear phase crossover integrates the three drive units perfectly, and connects to bi-wiring terminals on the rear panel to enable you to use 2 or 4 way speaker cables.

General description    3-way floorstanding speaker
Enclosure type    Close box with auxiliary bass radiator (ABR)
Bass driver    165mm ABR
Midbass driver    125mm Bass
Midrange driver    125mm Midbass
Treble driver    25mm Soft Dome
AV shielded    No
Sensitivity (2.83V @ 1m)    88dB
Recommended amplifier power    50-200W
Peak SPL    110dB
Nominal impedance    8Ω
Minimum impedance    4Ω
Frequency response (+/-3dB)    40Hz ~ 23kHz
Bass extension (-6dB)    35Hz
Crossover frequency    450Hz, 2.2kHz
Cabinet Volume(in litres)    27.8L
Height (on plinth & spikes)    925mm
Width    225mm
Depth    316mm
Carton size    309*390*1011mm
Net weight    17.2kg
Finish    Black Piano,Classique Cherry Piano,Deep Rose Veneer,Classique Cherry Veneer
Standard accessories    spikes, plinth,user manual, certificate,gloves
