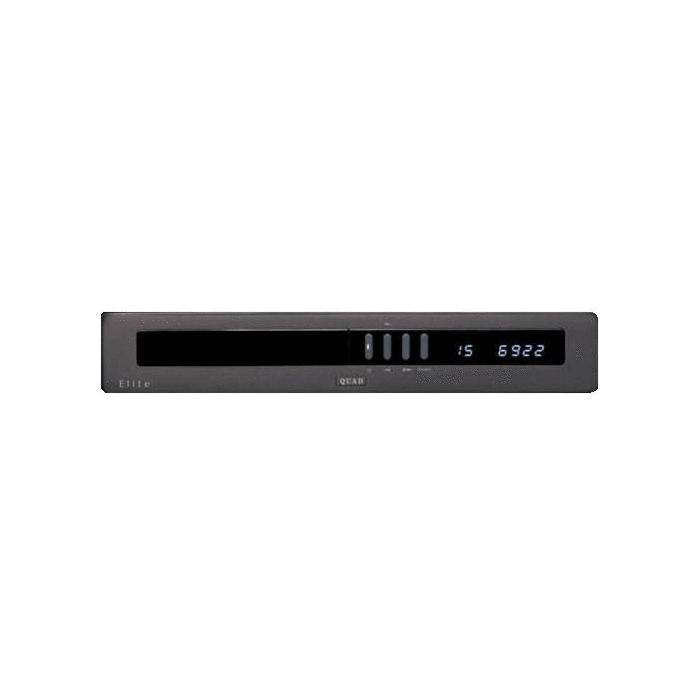

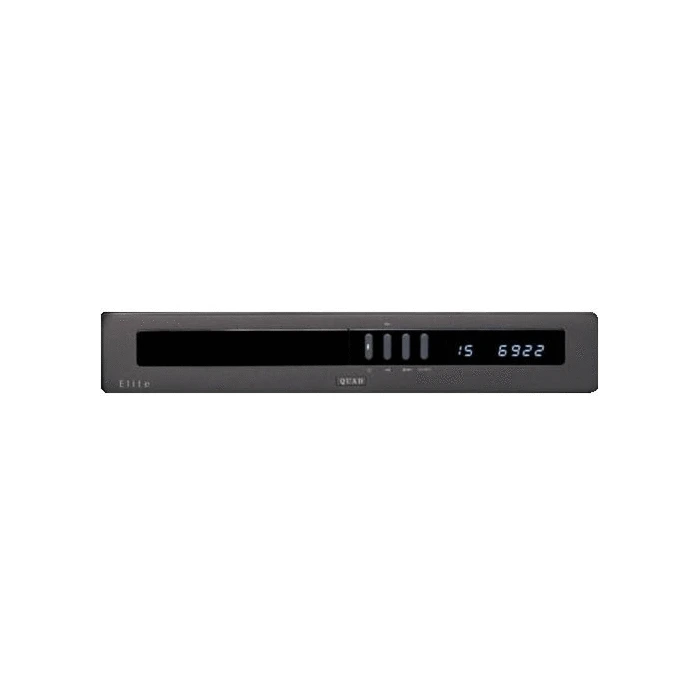

A complete re-design over the previous version, the Quad Elite CDS CD Player now has a new CD transport and servo ensures all CD discs are played to perfection.
Fed by a low jitter clock, the 24 bit 192kHz DAC's offer a truly audiophile performance. Multiple regulated DC power supplies feed each section of the circuitry to minimise any harmful interaction. Together with audiophile components and bespoke firmware and filtering software, ttis CD player gives a stunning audio performance from Compact Discs.
D/A Converter Crystal CS4398 24 bit DAC
Input Resolution Signals
Input Sampling Rates
Frequency Response 20Hz – 20kHz (+0dB / -0.7dB)
Max.Audio Line Output 2.4V RMS, RCA/4.8V RMS, Balanced (Quadlink)
Output Impedance 120 Ohms
Total Harmonic Distortion ‹0.0013% at 1kHz
Dynamic Range >100dB ‘A’ wtd. 16 bit
Signal to Noise Ratio ›113dB, Digital Silence (20Hz – 20kHz)
›116dB, Digital Silence (20Hz – 20kHz) ‘A’ wtd
›94 dB, 16bit (20Hz - 20kHz)
›97 dB, 16bit (20Hz - 20kHz) ‘A’ wtd
Crosstalk <-120dB at 1kHz
Digital Audio Output 1 x Optical TosLink, SPDIF
Disc Compatibility CD-DA Conventional Audio CD
CD-R Recordable CD
Main Power On/Off Switch Yes
Dimensions (H x W x D) 70 x 321 x 310 mm
Weight 4.5 kg
Remote Control 31 keys
