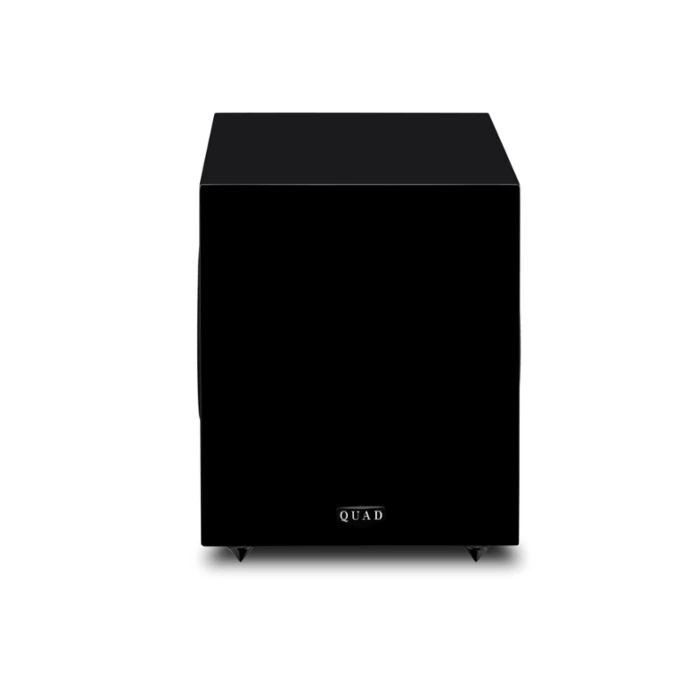

The Quad L-Ite LF66 active subwoofer is amazingly powerful despite its diminutive size, the sub’s attractively compact cabinet packs in two
mechanically opposed bass drivers with 150mm Duo Tri-Lam cones – a composite cone structure formed
from one layer of bi-directionally woven carbon fibre sandwiched between two layers of bi-directionally
woven glass fibre. These exceptionally light yet strong cones ensure minimal energy loss and, combined
with dual-wound voice coils and an integral 200W RMS (450W peak) amplifier, deliver bass that is deep, taut
and agile, with extremely low distortion and a smooth upper bass response that blends seamlessly with the
main speakers.

Model L-Ite Subwoofer
Configuration Active drive, sealed box
Bass Drivers 2 x 150mm Duo-Tri Lam cones
Amplifier Power Output 200W RMS; 450W peak
Frequency Response (±3dB) 35Hz - 120Hz
Bass Extension (-6dB) 30Hz
Crossover Frequency 305Hz - 150Hz
Adjustable Features

Phase inversion
Variable filter slope
High pass output
Low pass filter slope adjustment
Auto on/off

Dimensions (HxWxD) 308x237x241 (inc feet)
