Roksan TMS3 turntable


Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

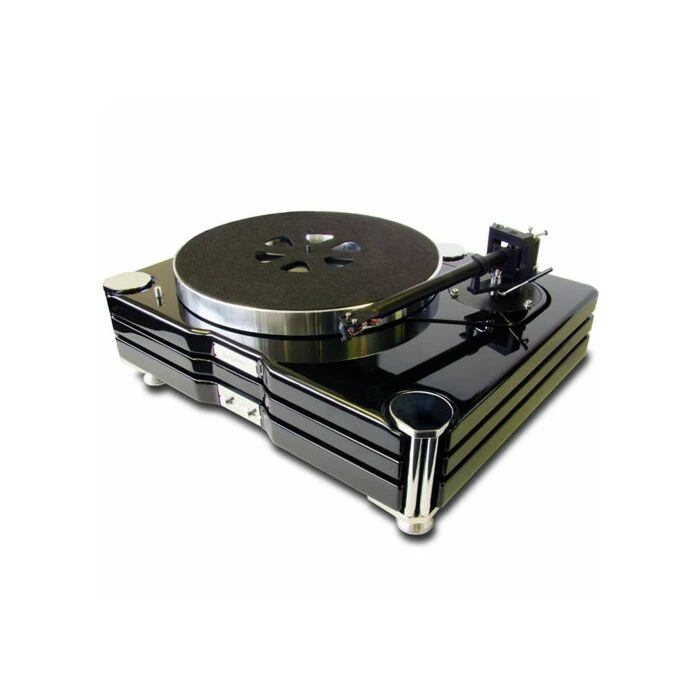

Roksan TMS3 turntable including Roksan Caspian DC power supply DS1.5 The design of the turntable strives to ensure that the critical stylus/ record contact point remains free of unwanted viabration to give the best possible information retrieval and sound quality from your vinyl records. The main bearing of the turntable is of the best quaility to elimenate any tendancy to wobble in the horizontal mode, ensuring mechanical integrity between the stylus and record. The four tier plinth prevents unwanted viabration from upsetting the delicate suspension and also giving additional isolation from acoustic feedback.

Main Bearing Spindle     Super Precision Tungsten Carbide
Roundness & Concentricity & Surface Finish < 1 Micron
Length to Diameter ratio 11:1
Main Bearing Ball     Super Precision Tungsten Carbide
Roundness < 1 Micron
Diameter 2mm
Main Bearing Housing     Solid Phosphor Bronze
Clearance 2/10,000”
Inner Platter     2 Piece Solid Aluminium alloy
Interference fitted non-resonant
Outer Platter     2 Piece Solid Aluminium alloy
Interference fitted non-resonant
Structure     4 Plinth Design
Isolation     7 Level De-coupling
Motor     Custom made 24 pole synchronous
Pulley     Solid Aluminium alloy
Roundness & Concentricity < 1 Micron
Drive Belt     Precision ground Neoprene
Motor Mount     Unique synchronizing bearing
Motor Drive     Super XPS.V (Internal)
Wow & Flutter     < 0.02%
Rumble     < -80dB
Dimensions     450 x 370 x 110mm
(incl. Feet & base) 450 x 370 x 150mm
(incl. Feet & base & dust cover) 450 x 370 x 220mm
Weight     18 Kg

Power supply

Output Voltage +26, 0, -26 Vdc
Noise < 10 microvolts (ref. 1 Hz - 3 MHz)
Output Impedance < 0.01 Ohm (ref. 20 Hz - 20 kHz)
System DX2 Chassis
Mains Input Filtered, double fused, switched IEC
Transformer Ultra low noise internally and externally shielded
350 VA Toroidal
Power Source 100V - 120V 50Hz / 60Hz
220V - 240V 50Hz / 60Hz
Power Consumption 240 W max.
Dimensions 432 x 330 x 70 (W x D x H) mm
432 x 330 x 80 (including feet)
Weight 12 Kg max. Fully loaded
