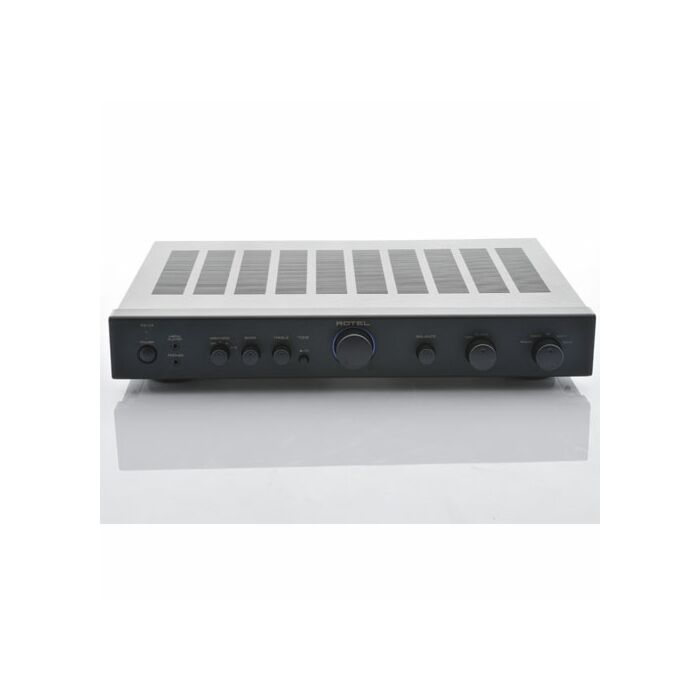

Even though a power output of 2 x 40W into 8 ohms may not seem so high, the Rotel RA-04SE has huge current reserves thanks to it's over-sized toroidal transformer, enabling it to drive almost any speaker you might think of with ease. This amp has low distortion, wide-bandwidth circuitry giving it's sound quality a level of detail and transparency that is surprising at the price.
Not short of features either, it offers connections and switching for two pairs of loudspeakers, a MM phono input, four line inputs plus a tape loop. Bass and treble tone contols with balance are also available, as is a tone defeat button for the shortest possible signal path. Headphone users are not forgotten, the Rotel RA-04SE has a dedicated headphone amplifier with mini-jack socket on the front panel. MP3 players are catered for of course, with a 3.5mm mini jack connection on the front. Available in either black or silver finishes, this amp is an ideal centrepiece for any hifi system on a budget.
Continuous Power Output (20 – 20kHz, <0.03%, 8 ohms): 40 watts/ch
Total Harmonic Distortion (20Hz-20kHz) <0.03% at rated power, 1/2 power or 1 watt
Frequency Response Phono Input: 20Hz – 15kHz: ±0.3dB
Line Level Inputs: 10Hz – 40kHz: ±1dB
Damping Factor (20-20,000 Hz, 8 Ohms) 180
Input Sensitivity / Impedance Phono Input: 2.8mV / 47kOhms
Line Level Inputs: 170mV / 24kOhms
Input Overload-o Phono Input: 180mV
Line Level Inputs: 5V
Pre-amp Output / Impedancee 1V / 470 Ohms
Tone Controls – Bass / Treble ±6dB at 100Hz / 10kHz
Dimensions (W x H x D) mm 435 x 72 x 342mm
Signal to Noise Ratio (IHF “A” Weighted) Phono Input: 80 dB
Line Level Inputs: 100 dB
Power Consumption 220 Watts
Panel Height 60 mm
Weight (net) 5.9kg, 13lbs
