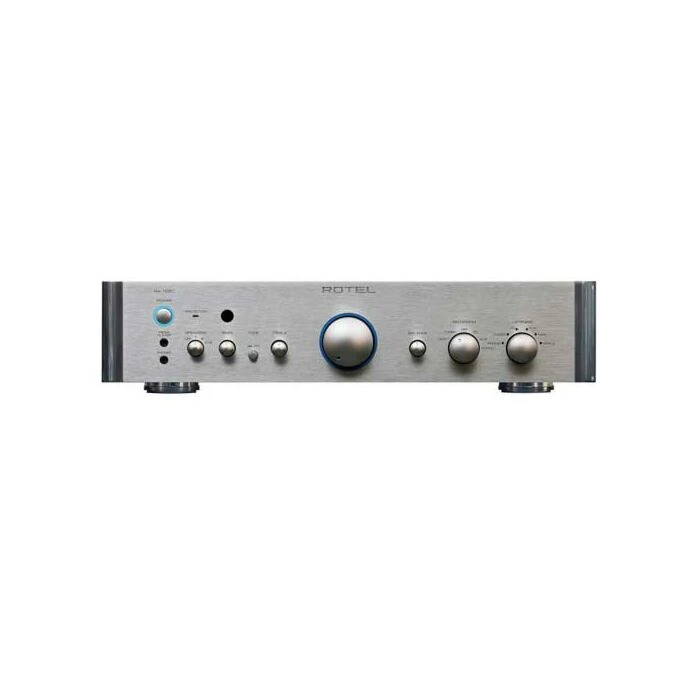

Rotel RA-1520 integrated amplifier


Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

A fabulous integrated stereo amplifier delivering 60W x 2 into 8 ohms and with high current capacity, this unit offers all the features you could wish for in an audiophile amplifier. Wide-band, low distortion circuitry gives a very revealing and transparent sound quality, whilst the over-specified power supply ensures transients and bass are always totally realistic. Five line level inputs, a tape loop and moving magnet phono input enables you to connect all required audio sources , whilst the pre-outputs enable you to add a second stereo power amplifier to bi-amp your main speakers. Bass and treble tone controls permit fine tuning of the sound of your system to suit the room and your personal taste. Fully infra red controllable, comes with a fully featured hand held remote to give you armchair control.

Power Configurations    2 x 60 watts (20Hz-20kHz, <0.03%, 8 Ohms)
THD (20-20,000Hz) 8 Ohms, all channels driven    < 0.03%
Phono Input    20Hz-15kHz, +/- 0.2dB
Line Level Input    10Hz-100kHz, +1, -3dB
Damping Factor (8 Ohms)    150
Line Input Sensitivity    160mV / 24kOhms
Bass    +3, +4dB at 100Hz
Treble    + 3dB at 10kHz
Line Input Overload    5V
Phono (MM)    2.4mV / 47kOhms
Phono Overload (MM)    170mV
Preamp Output Levels / Output Impedance    1V / 470 Ohms
S/N Ratio (IHF A)    >95dB
Power Requirements USA    115 Volts, 60Hz
Power Requirements CE    230 Volts, 50Hz
Power Consumption    300 watts
Dimensions (W x H x D) mm    432 x 92 x 364 mm
Dimensions (W x H x D) in    17 1/8 x 3 5/8 x 13 5/16 in
Front Panel Height    80 mm / 3 3/16 in
Weight (net)    7.8 kg, 17.2 lbs
