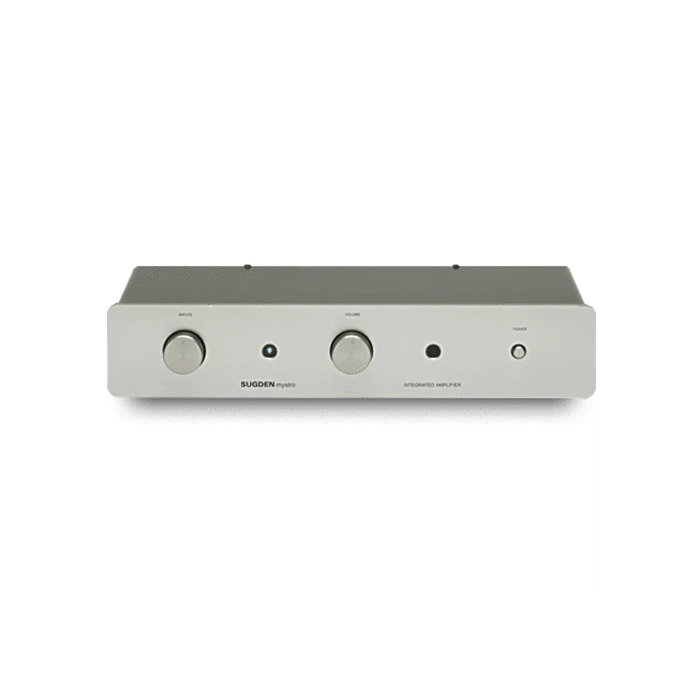

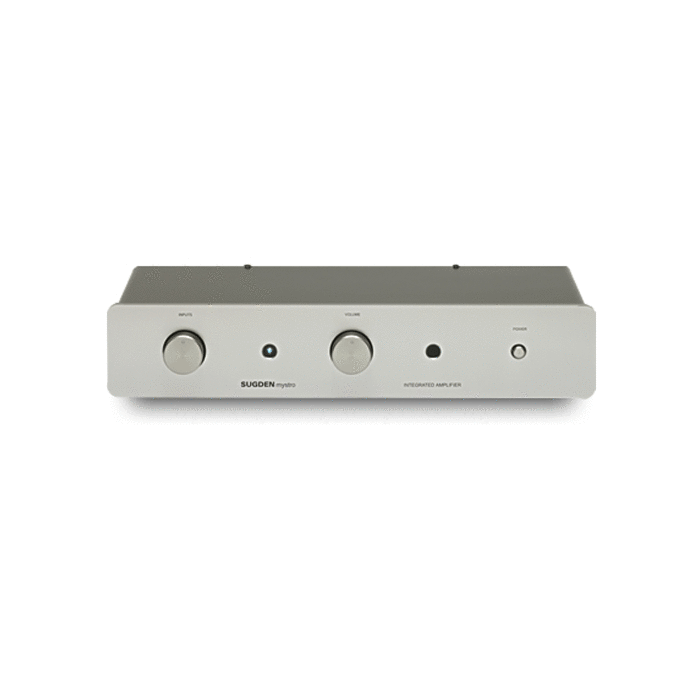

Sugden Mystro integrated amplifier
SUGDEN Integrated Amplifiers have been drawing high praise in the Audio World for four decades and the new MYSTRO model is destined to be greatly hailed and admired. The
Mystro is a solid state 50 watts per channel AB amplifier capable of driving a broad range of loudspeakers, specially developed to retain the low level listening advantages of Sugden Class A amplifiers. Manufactured at the Sugden Factory in Yorkshire, by their dedicated workforce it is their introductory product to a world of music reproduction, a beguiling world of ësimply more musicí This SUGDEN Mystro amplifier has many innovative and original circuits providing the ultimate in reproduction performance. The Mystro has by design an excellent Green Pedigree, fully metal cased, housing RoHs compliant components; it requires very low quiescent and
The Mystro amplifier is a very fast and dynamic amplifier, which will enthral and surprise its audience whilst still retaining the Hall Mark of all SUGDEN products, Fatigue Free Listening.
A superb portrayer of natural instruments, because of the fatigue free sound it is also particularly suitable for reproducing popular music.
The Mystro is the first Sugden amplifier to include a ëVCVí (voltage current voltage) pre
amplifier stage. The configuration of this pre amplifier includes a buffered input, voltage to
current converter (Howland Current Pump) and current to voltage output stage. This produces
a perfect current, independent of the volume control setting, in the HCP stage, resulting in
perfect structure and extremely low signal to noise characteristics. This current drives the
virtual earth output stage achieving an exceptional tonal balance, even at very low listening
The pre amplifier is combined with an AB Power Amplifier which has been developed over
many years to give the best compromise between Class ëAí and Class ëBí type of operation.
The power amplifiers are configured as dual mono output stages with low impedance power
supplies to ensure excellent bass timing. The circuitry has been tuned to give extended high
frequency clarity, with purpose and punch, to deal with some of the latest digital recording
techniques. Tremendous headroom has also been included in the tone burst capabilities of
the 125-watt, multi emitter, Bi polar output devices.
The whole circuitry results in an amplifier with low noise floor, constant tonal balance,
optimum high frequency performance and uncoloured, unrestrained fatigue free sound. A
sound, which could only be found in the most expensive designs until now.
Whilst the Mystro amplifier is a SUGDEN PASSPORT to unrestrained musical pleasure the
access is gained via: -
Input facilities of: -
One pair of phono input sockets for stereo MM cartridge
Three stereo Line level input phono sockets.
Outputs via: -
Stereo pair (4) of robust gold plated binding posts suitable for Spade or 4mm banana plugs.
Selection of the input signal is by discreet input relays, positioned to minimise the signal paths
and operated by a front panel, rotary selector switch. The volume control is accomplished via
a front mounted rotary gain control which can also be RC5 Remote operated. It operates just
like a normal volume control whilst retaining sonic purity.
A large high quality, mono, printed circuit board houses all the selected discreet audio
components, together with individually selected, low noise, low distortion, high slew rate and
high bandwidth op amps. Most hardware components are mounted directly to the board and
where they have hard-wired interfaces these are all of special silver/gold constructions.
Observation of the main board reveals a disciplined topography with right and left channels clearly defined and the use of best audio practice techniques.
The Power Supply is a robust triple secondary wound toroidal transformer of 200va. There are separate windings for each power output channel and a third winding for supplying the pre amplifier stages. The latter supply is arranged with high impedance channel-to-channel and current shunt supplies to the active stages. The power output stages are smoothed by 6800uf capacitors, resulting in low impedance, fast response power availability to drive and control the connected speakers.
The Sugden Mystro embodies truly advanced and innovative audio circuitry, developed to its ultimate level, value engineered and subjectively mastered, to create a wondrously musical amplifier.
Specifications and Facilities
MYSTRO Integrated amplifier:
Power output 50 Watts into 8 Ohms
(Both channels working) 75 Watts into 4 Ohms
MM Phono 2mV
Frequency Response (Line)
Bandwidth (wide) 10Hz ñ 170kHz (3dB)
Noise (Line pre-amp) 90dB
Distortion @1kHz 1 Watt
