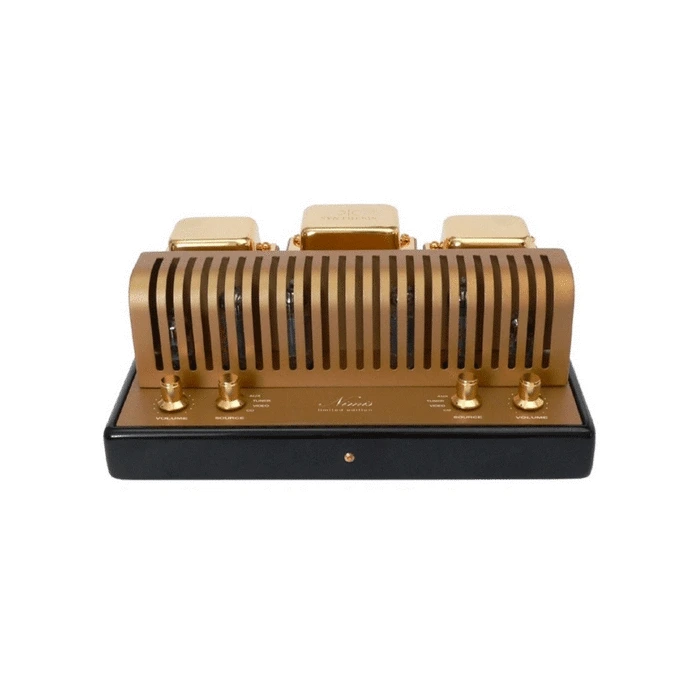

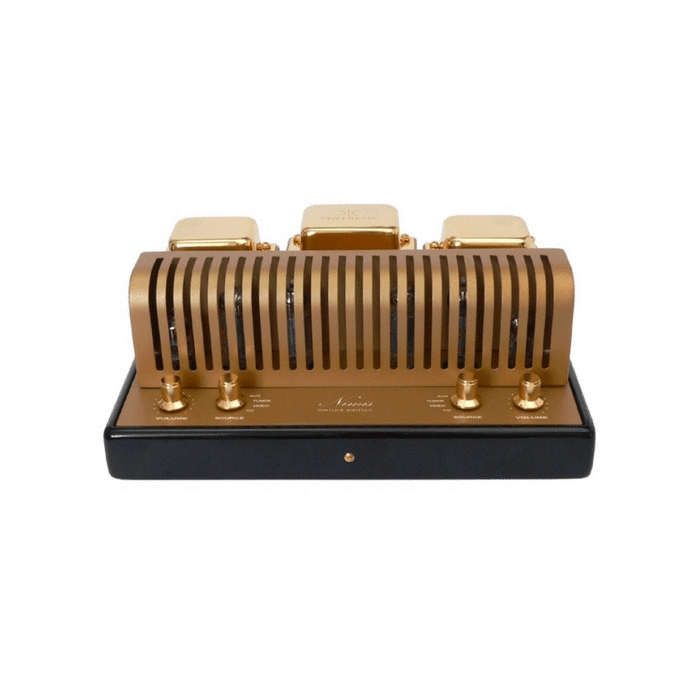

Synthesis Nimis LE tube amplifier


Click on the image to enlarge and zoom.

This product is no longer available

The Nimis Limited edition has a much larger power supply, with 600 µF capacitors, and +350 Volts on them, giving 40 Joules of energy storage (maximum). A power transformer of 250W (EI core) powerful enough to 20 watts per channel. Nimis LE exclusively uses gold plated tube sockets. These ceramic tube sockets will last much longer than traditional sockets as the ceramic material is much more resistant to shorting and provides much better insulation between the tubes pins. The gold plated pins also make for an extremely low resistance connection that translates into less noise and more reliability as the tube socket pins will not corrode over time. High quality brass knob, heavily gold plated, 20mm diameter for volume and source controls.

      Power stage:     2 x 6BQ5-EL84
      Driver:     ½ 12AX7-ECC83
      Input stage:     ½ 12AX7-ECC83
      Controls:     Front: Input switch selector, volume.
      Rear: Power button, male power sck, protection fuse, RCA gold plated connectors, output gold plated connectors.
      Inputs:     4 Input line level: Cd player, Tuner, Video, Aux.
      Outputs:     Tape out
      Power output:     20W RMS/6 ohm
      Configuration:     Push-pull
      Signal/Noise ratio:     >90dB, A weighted
      Power consumption:     150W Max
      Finish:     Black piano laquer Synthesis red laquer
      Dimensions:     (w,d,h) 320x220x120mm
      Weight:     12.0 Kg
