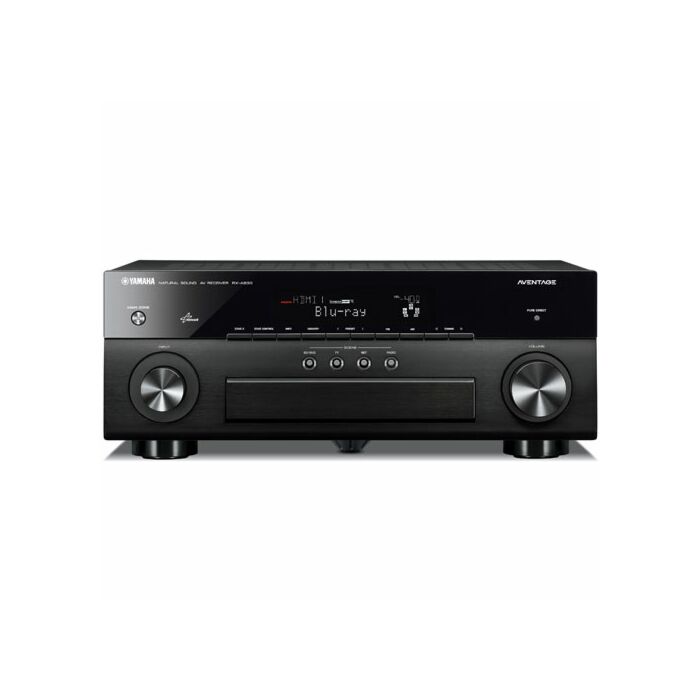

Yamaha RX-A830 AV Receiver

Yamaha RXA830 BlackYamaha RXA830 Black

More Views

  • Yamaha RXA830 Black
  • Yamaha RXA830 Titanium
  • Yamaha RXA830 Rear
  • Yamaha RXA830

Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

Yamaha RX-A830 AV Receiver

AVENTAGE 7.2-channel Network AV Receiver delivers high quality audio and video performance and sports a classy exterior with ceiling panel. Uses Anti Resonance Technology Wedge design and also offers MHL support, AV Controller App support, HDMI Zone B output and Multi-point YPAO R.S.C.

  • AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
  • Aluminium Front Panel Offers Visual and Aural Benefits
  • Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
  • 7-channel powerful surround sound and full discrete amp configuration
  • 160W per Channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven [European Model])
  • 100W per Channel (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)
  • 160W per Channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
  • MHL supports full HD video and audio from mobile phones and portable devices
  • Network functions such as AirPlay, Napster®* music streaming service and AV Controller app
  • *Music service availability varies by region.
  • FLAC or WAV 192kHz/24-bit audio playback
  • High quality video processing with precise deinterlacing
  • YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point measurement
  • HDMI (8 in [1 on front] ) / 2 out) with 3D and Audio Return Channel
  • HDMI Zone B for audio/video streaming to another room
  • Learning-capable remote unit (Preset remote unit in some areas)
  • Versatile Zone control such as Zone 2 on/off and control on front panel
  • Advanced multi-language GUI on-screen display with (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
  • Detachable AC power cord for easier installtion
  • ECO mode operation for about 20% less power consumption

Amplifier SectionChannel 7.2
Rated Output Power (1kHz, 1ch driven) 160W (4ohms, 0.9% THD [European Model])
Rated Output Power (20Hz-20kHz, 2ch driven) 100W (8ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 160W (8ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 140/180/210/250W
Surround Sound ProcessingCINEMA DSP Yes (3D)
DSP Programs 17
Compressed Music Enhancer Yes
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Dialogue Lift Yes (no presence speakers required)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio FeaturesPure Direct Yes (with video on mode)
YPAO multi-point measurement Yes (R.S.C)
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features4K Pass-through & 4K Upscaling Yes
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
ConnectivityHDMI Input/Output 8 (front 1) / 2 (Simultaneous)
HDMI CEC Yes (SCENE, Device Control)
MHL Support Yes
USB Input iPod/iPhone/iPad, USB Memory, Portable Audio Player
Network Port Yes
AirPlay Yes
Front AV Input HDMI (MHL support)/USB/Composite
DC Out Yes
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 6 / 1
Phono Input Yes
Component Video Input/Output 2 / 1
Composite Video Input/Output 5 (front 1) / 1
Preout 7.2ch
Headphone Output 1
Tuner SectionFM/AM Tuner Yes
User InterfaceOn-screen display Graphical User Interface
SCENE SCENE (4 sets)
App Control Yes (iPhone/iPad/Android phone/tablet)
Web Browser Control Yes
Remote Control Unit Yes (Learning*) *Preset remote unit in some areas
Zone ControlZone 2 Audio Output Line output
Powered Zone Zone 2
Zone B Output Yes (HDMI)
RS-232C Interface Yes
+12V Trigger Output 1
Remote (IR) Input/Output 1 / 1
GeneralStandby Power Consumption (IR only) ≤0.15W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 171 x 369 mm; 17-1/8” x 6-3/4” x 14-1/2”
Weight 10.5 kg; 23.2 lbs
