Bowers & Wilkins PM1 Speakers with PM1 Stands - Part-Ex

Regular Price: £2,495.00

Special Price: £1,649.00

Click on the image to enlarge and zoom.

This product is no longer available

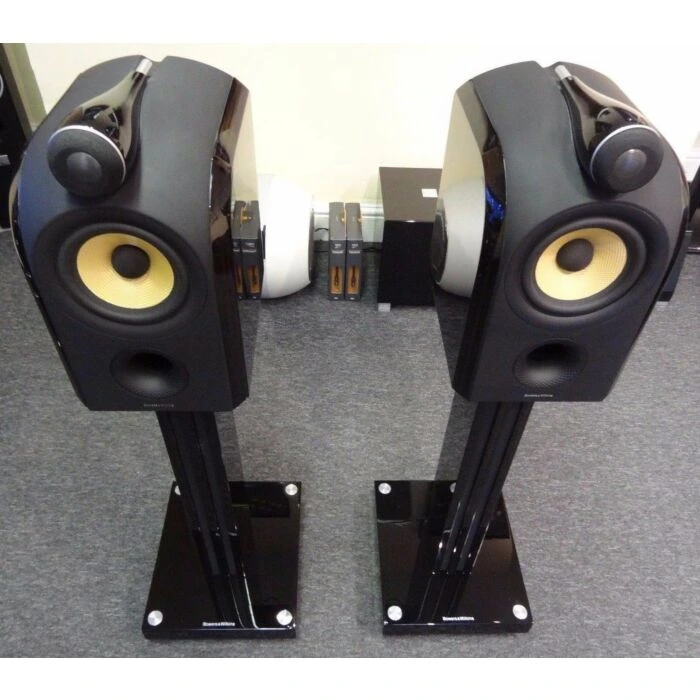

Here on offer are a customer trade in pair of Bowers & Wilkins PM1 speakers with matching stands. The speakers have been exceptionally well looked after and in mint condition, the stands are also in excellent condition but with a slight mark on the front of each. With original box for the speakers but not the stands, these will be boxed safely for delivery if needed. Comes with a 1 year warranty. Any questions please let us know.


A refined, premium quality stand mount compact loudspeaker, the new B&W PM1 is designed for the superb reproduction of music. Featuring a new tweeter and cabinet design by Bowers & Wilkins research and development engineers in Steyning, Sussex, this new model is capable of stunning  three dimensional sound staging with a degree of scale and authority which is totally unparalleled in it's class.

Many new technical breakthroughs have been incorporated into the design of this new monitor, both trickle-down technology from the 800 Diamond series, and also additional new developments not seen in other Bowers and Wilkins loudspeakers to date.

The aluminium dome tweeter has a ring of carbon bracing to increase it's rigidity, thereby increasing the breakup frequency to 40kHz, beyond the limits of human hearing. Treble output is incredibly sweet and detailed, and gives this model fabulously deep and wide imaging qualities.

The kevlar bass midrange driver is a well proven, rigid material which delivers low colouration and excellent, solid bass - the engineers have added  an anti-resonance, mushroom shaped plug which fits inside the pole piece, to ensure resonance and bass overhang are a thing of the past, enabling the listener to hear drums, double bass and organ with the full power and substance of the live event.

Cabinet resonances have also been radically dealt with by using a multiple matrix of strengtheners within the enclosure itself which interlock, giving very solid bracing and a very natural presentation of the all important vocal frequency range.

The matt black, curved mineral-loaded resin baffle is inert and rigid, ensuring superb stereo imaging and total clarity of sound stage.

A minimal electronic crossover has been employed using Mundorf M-Cap supreme oil capacitors to reduce microphony. Overall, the PM1 gives a superb rendition of stereo recodings with an expansive, coherent soundstage, sweet highs and comanding lows with natural, uncoloured midrange and great scale of sound.

Finished in luxurious Mocha gloss real wood veneer side cheeks, optional floor stands complete this high-end package.

We have this loudspeaker on demonstration for any customers who wish to hear them, please call us on 01432 354921 to book your demo

Technical features

Nautilus™ tube loaded tweeter with carbon fibre reinforced aluminium dome Kevlar® brand fibre cone bass/midrange
Description 2-way vented-box system
Drive units 1x ø25mm (1 in) reinforced aluminium dome high-frequency
1x ø130mm (5 in) woven Kevlar® cone bass/midrange
Frequency range -6dB at 42Hz and 60kHz
Frequency response 48Hz - 22kHz ±3dB on reference axis
Dispersion Within 2dB of reference response
Horizontal over 60º arc
Vertical over 10º arc
Sensitivity 84dB spl (2.83V, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 110Hz - 22kHz
Nominal impedance 8Ω (minimum 5.1Ω)
Crossover frequency 4kHz
Recommended 30W–100W into 8Ω on unclipped programme
amplifier power
Max. recommended 0.1Ω
cable impedance
Dimensions Height 331mm (13 in)
Width 191mm (7.5 in)
Depth 250mm (9.8 in) cabinet only
293mm (11.5 in) including grilles and terminals
Net weight 9.3kg (20.5 lb)
Finishes Cabinet Mocha Gloss
Grille Black,
Stand Mocha Gloss
