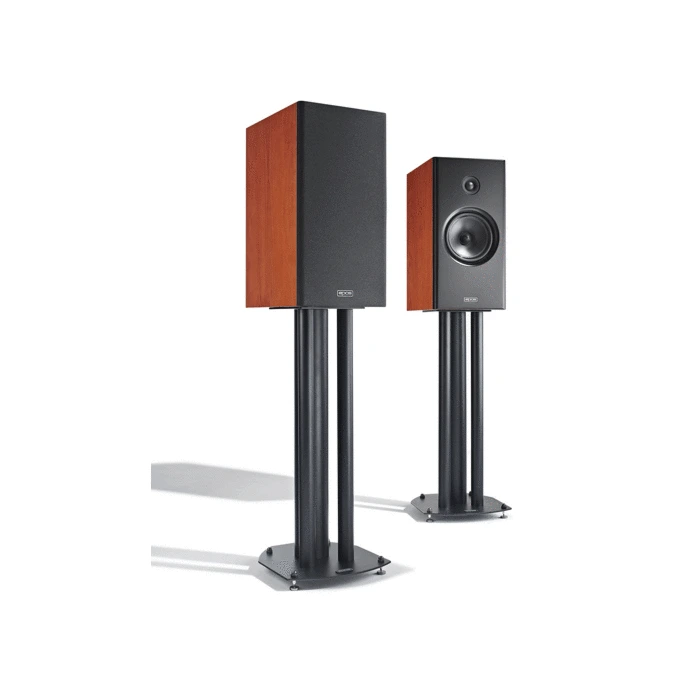

Epos Elan 15 bookshelf speakers
This bass/mid unit features a high-quality polypropylene cone and ‘bullet’-shaped dust cap. These form a stiff yet pliable, well-damped structure which retains its shape, even under high power, and help the woofer to produce a dynamic sound, with a very even frequency response and smooth roll off.
The woofer is loaded by a good-sized port, flared at both ends to reduce turbulence, to produce more deep, clean, detailed bass than expected from such a modest cabinet, coupled with a clear and smooth mid-range.
This medium-sized speaker is much more sensitive than you’d expect, making it suitable for use with a wide range of amplifiers, from as small as 20 watts to as large as 120 watts.
In typical Epos fashion, the Elan 15 crossover is as simple as we can make it: both the woofer and tweeter networks are 2nd order filters at 3.2 kHz. To ensure the highest sound quality, all the resistors are metal oxide, all the capacitors are high-quality polypropylene-foil dielectric, and internal wiring is solid core. Inductors are designed for low distortion even at high powers: air-core for the tweeter and an over-sized laminated-iron cored coil for the woofer. The input terminals are bi-wirable.
We paid great attention to every single minute detail during the design of the Elan 10, to give customers the best sound at the best price. It comes as no surprise that this elegant speaker will have you in awe from the first note. In addition to the astonishing bass power for its size, sound stage, depth and detail are truly exceptional, with a clarity that outshines the competition and many higher priced speakers.
This is a truly eye and ear-opening loudspeaker that will keep you enthralled listening to your favorite tracks for many years to come.
Power Handling 120 Watts unclipped speech and music
Frequency Range 47 Hz – 25 kHz
Impedance 4 Ohm nominal
Sensitivity 90dB / 2.83V@1m
Amplifier Compatibility 20 – 120 Watts
Positioning Not less than 10 cm (4”) from rear wall
Tweeter Epos 25mm soft dome with high-temperature voice coil, ferrofluid cooling and neodymium magnet system. Magnetically shielded
Bass/Midrange Drivers Epos 187mm dia., with cast chassis, 25mm high-temperature voice coil and polypropylene cone. Magnetically shielded.
Crossover Frequencies 3.2kHz
Crossover Bass and tweeter networks both use 2nd order filters. Only metal oxide resistors and polypropylene film capacitors are used for optimum sound quality. The tweeter section has an air-cored inductor, and the woofer section features a large-core laminated-iron inductor for low distortion and high power handling, all to ensure the very highest sound quality.
Terminal Panel Bi-wirable. Can be single or double wired by removing shorting links provided.
Internal wiring Solid-core Audiophile grade copper cable
Cabinet 18mm MDF wrap and front baffle, extensively braced internally
Finish Cherry or Black Oak real-wood veneer
Grilles Removable ‘audiophile’ grille fitted as standard,
Alternative cloth-covered grilles are packed as accessories.
Size HxWxD – mm / in. 415 x 210 x 280 / 16.4 x 8.3 x 11
Weight 8.8 kg / 19.4 lb per single speaker (net)
21 kg / 46.2 lb per carton (gross)
