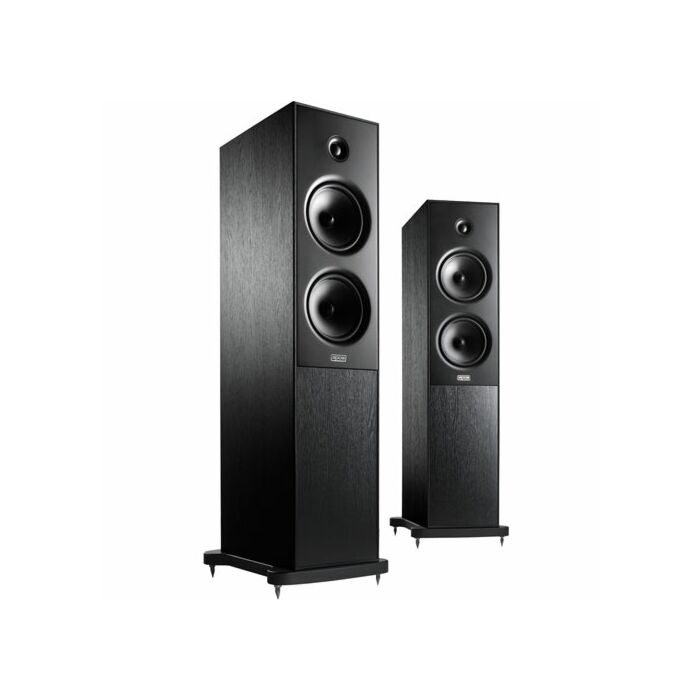

A 2.5 way design of suprising capability, the Epos Epic 5 is able to fill the largest of rooms with high quailty music.
Featuring many innovative features which enhance sound quality, these speakers are solidly constructed from internally braced 18mm thick MDF, and finished in a high quality vinyl wood veneer of either cherry or black ash. A removable audiophile baffle gives best sound quaility, however this can be removed if desired and replaced with a fabric grille for better protection of the drive units.
A 25mm soft dome tweeter is detailed and fast in response, whilst the twin 179mm polypropylene bass midrange drivers are reflex loaded leading to deeper, more extended bass and clear, transparent midrange. A phase plug is located at the centre of the bass/ midrange driver.
Simple second order crossover filters are constructed from metal oxide resistors and polypropylene capacitors for the most transparent sound quality possible. Epos Epic 2 speakers can be driven from amplifiers in the power output range of 20W to 200W.
Gold plated bi-wired terminals on the rear allow speakers to connect using either two or four core speaker cable.
Sounding best away from side or rear walls, these speakers will reward the listener with glorious, rich sound which is super detailed but also smooth and easy on the ear.
-
|
|
| Specifications |
Power Handling 200 Watts unclipped speech and music Frequency Range 45 Hz – 25 kHz Impedance 4 Ohm nominal Sensitivity 92dB / 2.83V@1m Amplifier Compatibility 20 – 200 Watts Positioning Not less than 10 cm (4”) from rear wall Tweeter Epos 25mm soft dome with high-temperature voice coil, ferrofluid cooling and neodymium magnet system. Magnetically shielded Bass/Midrange Drivers Epos mid bass 179mm, with 25mm high-temperature voice coil and polypropylene cone. Crossover Bass and tweeter cross-over with 2nd order filters. Tweeter network uses Metal Oxide resistor, polypropylene film capacitor and air-core inductor. Woofer networks feature large-core laminated-iron inductors and polypropylene film by-pass capacitors (with Metal Oxide resistor in mid/bass network). Terminal Panel Gold-plated and Bi-wirable. Can be single or double wired by removing shorting links provided. Internal wiring 18 AWG stranded cable. Cabinet 18mm MDF wrap and front baffle, extensively braced internally Finish Cherry or Black Ash vinyl veneer Grilles Removable ‘audiophile’ grille fitted as standard, Grille–removal tool included. Alternative cloth-covered grilles are packed as accessories Size HxWxD – mm / in. 915 x 210 x 320 / 36 x 8.3 x 12.6 (Cabinet only) 980 x 286 x 380mm (including plinth) Weight 19.7 kg / 43.4 lb per single speaker Packaged One per carton |
-
-
