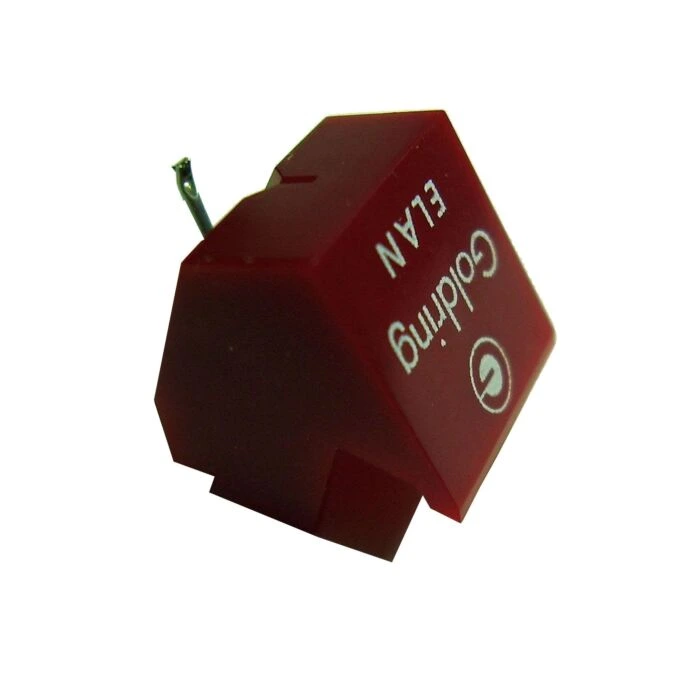

The Elan has been specifically designed to cater for the demanding audiophile on a budget and, as such, is capable of remarkable results. The cartridge has a rigid body and fully enclosed mounting lugs and represents the most versatile low-cost choice cartridge on the market.
Replacement styli:
D145 stylus
-
Frequency Response 20Hz-20kHz±3dB
Channel Balance 2dB @ 1kHz
Channel Separation 20dB @ 1kHz
Sensitivity 5mV±2dB, 1kHz @ 5 cm/sec
Static Compliance 16mm/N
Equivalent tip mass 0.7 mg
Vertical Tracking Angle 26°
Stylus Type Replaceable
Load Resistance 47,000 Ohm
Load Capacitance 150-400pF
Internal Inductance 560 mH
Internal Resistance 700 Ohm
Cartridge Weight 4.2g
Fixing Centre (12.7mm)
Playing Weight 1.5-3.0g (2.0g nom.)
-
-
