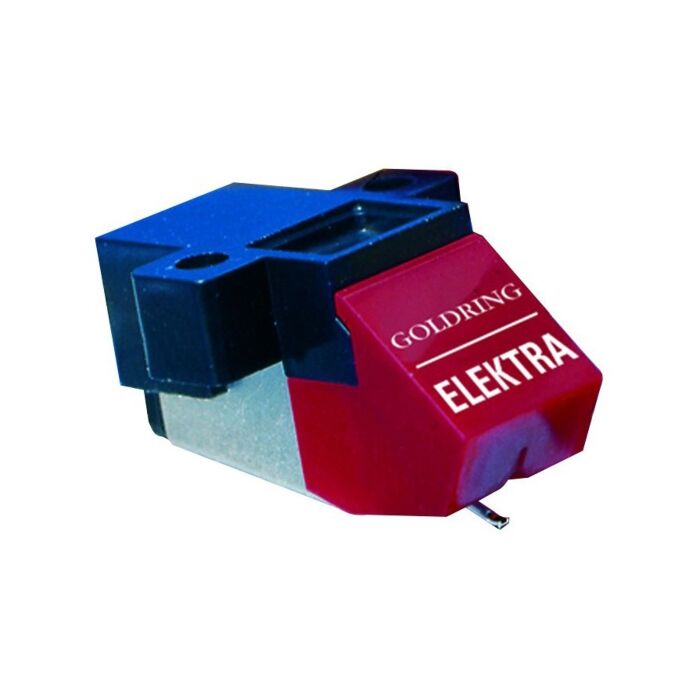

The Elektra is a low-cost moving magnet phono cartridge which incorporates several audiophile features. Tracking ability is excellent and this cartridge uses an Elliptical stylus tip. The low-mass cantilever assembly has a surprisingly wide ranging compatibility with the best tonearms and turntables available.
-
Frequency Response 20Hz-20kHz±3dB
Channel Balance 2dB @ 1kHz
Channel Separation 20dB @ 1kHz
Sensitivity 7mV±2dB, 1kHz @ 5 cm/sec
Static Compliance 16mm/N
Equivalent tip mass 0.7 mg
Vertical Tracking Angle 26°
Stylus Type Replaceable
Load Resistance 47,000 Ohm
Load Capacitance 150-400pF
Internal Inductance 560 mH
Internal Resistance 700 Ohm
Cartridge Weight 4.2g
Fixing Centre 12.7mm
Playing Weight 1.5-2.0g (1.7g nom.)
-
-
