Graham Slee Elevator EXP - MC Step-up Amplifier

£639.00

Click on the image to enlarge and zoom.

Free Gift - choose from a range of great products when you spend over £300

Be the first to review this product

Free Delivery

OR
Secure Shopping

Graham Slee is a small, enthusiastic manufacturer of realistically priced, high performance phono stages and headphone amplifiers, designed and built by hand in Yorkshire since 2003. Very positively reviewed by UK and international magazines, demand for these products has been overwhelming as the world's hifi enthusiasts can't believe the performance on offer for the price asked.

Each unit is designed by owner/ engineer Graham Slee and then hand constructed by two skilled electronics engineers before being thoroughly tested to check it meets it's specification and is 100% reliable.

If you are looking to upgrade your moving magnet cartridge to a moving coil type for improved sound quality, you may have a problem if your current amplifier only has a moving magnet input, as the low output of most MC cartridges will not be enough to achieve high volumes.

This unit solves this problem, by boosting the weak output of MC cartridges to MM level, which is a gain of approximately x13 times.

Operating as a step up transformer, it eliminates the pitfalls of transformers such as hum pick up and limited frequency response by dispensing with the transformer altogether, and replacing it with sophisticated wide bandwidth electronics.

With wide stability margin and a flat frequency response from DC to 1MHz, it is extremely resistant to RF interference and hum. The metal shielded casework is a natural barrier to noise and hum, whilst the filtered power supply input provides further shielding to noise ingress.

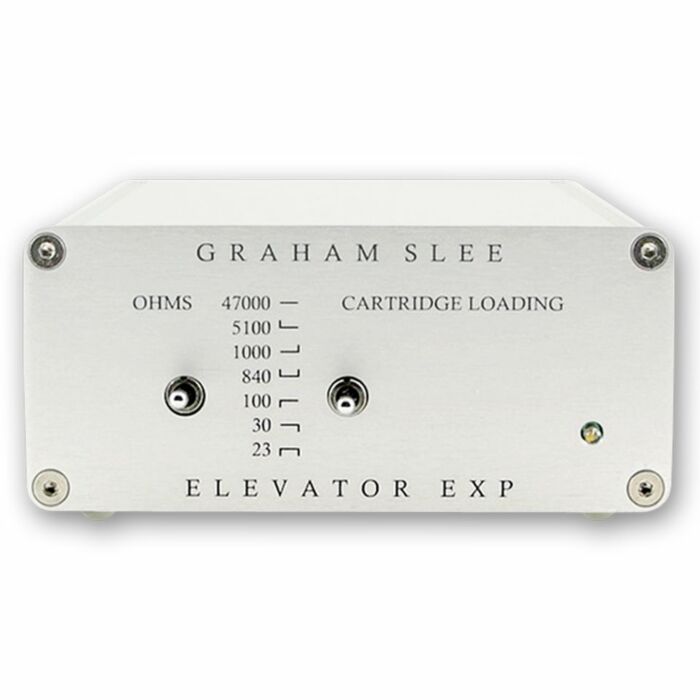

The front panel switch allows the user to select six different load impedance settings to suit your cartridge and sound tastes to perfection.

Coming complete with the external Graham Slee PSU1 regulated power supply, the Graham Slee Elevator EXP will heighten your listening pleasure.



Input range  0.15mV to 0.8mV
 Output (for input range)  2mV to 10mV, suitable for a
moving magnet phono stage input
 Maximum input 378mV rms
(a very large overload margin)

 Maximum output 4.914V rms
Gain  22dB (13) < 10Hz to 917kHz
(-3dB points)
 Input impedance 23 Ohms
30 Ohms
100 Ohms
840 Ohms
1000 Ohms
5100 Ohms
47000 Ohms
Output (driving/source) impedance  300 Ohm
 Noise at output -99dB CCIR Q-pk
 Distortion .02%
 Frequency response < 10Hz to 917kHz (-3dB points)
Channel balance 0.2dB
 Channel separation 64dB
Size (approx.) W: 107 x H: 50 x D: 180 (mm)
inc. jacks
