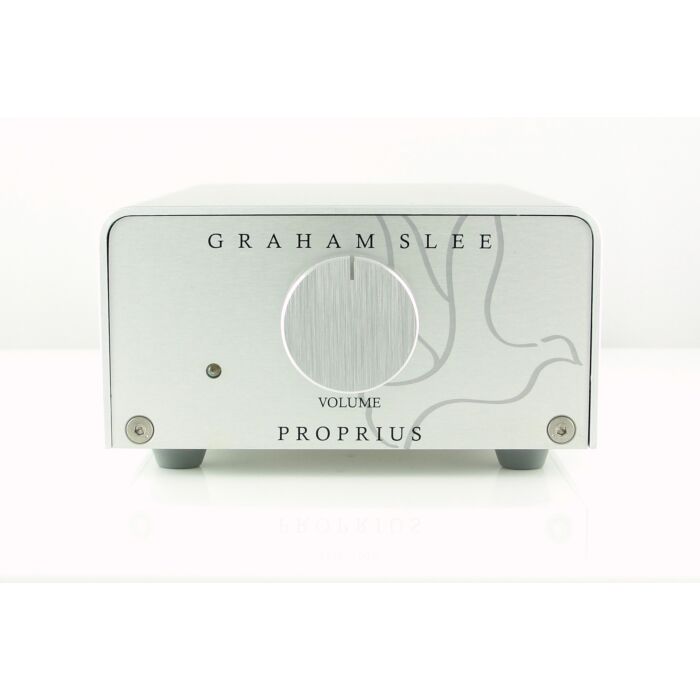

Graham Slee Proprius Monobloc Power Amp

£649.00

Click on the image to enlarge and zoom.

Free Gift - choose from a range of great products when you spend over £300

Be the first to review this product

Free Delivery

OR
Secure Shopping

Graham Slee is a small, enthusiastic manufacturer of realistically priced, high performance phono stages and headphone amplifiers, designed and built by hand in Yorkshire since 2003. Very positively reviewed by UK and international magazines, demand for these products has been overwhelming as the world's hifi enthusiasts can't believe the performance on offer for the price asked.

Each unit is designed by owner/ engineer Graham Slee and then hand constructed by two skilled electronics engineers before being thoroughly tested to check it meets it's specification and is 100% reliable.

The Graham Slee Proprius Monobloc power amplifier delivers 25 watts into 8 Ohms (RMS) and 45 watts into 4 Ohms.

It's a mono-block amp so two are required for stereo. We made it this way for a variety of reasons — one of which allows them to be used remotely at, or fixed to, the loudspeakers for powered monitor performance from your favourite passive speakers — see speaker mount tab. The great thing about mono-blocks is they give you true dual-mono amplification for improved stereo separation. They're perfect for use with high sensitivity speakers where quality comes before quantity. However, they're not short on quantity and sound louder than their 25 watt rating would suggest, even using speakers as low as 83dB sensitivity — including the Stirling Broadcast/BBC 11 Ohm LS3/5A.

The balanced XLR input works just as well single ended with shorter interconnects so using them side by side like a normal amp isn't a problem — you can find suitable interconnects in our Cables & DIY section. For remote or speaker mounted placement requiring long cable runs, you'll need a source with balanced outs and our balanced audio cables. Unusually for a power amp, the Proprius is equipped with its own volume control meaning it can be used direct from a fixed output source. When using it with a control preamp the volume control is put "out of circuit" by parking it at full rotation.

The input is based on the balanced topology by David Birt of the BBC, modified to "all-inverting" making it free of common mode distortion. Absolute phase is accomplished by "phase swapping".



 Power output (rms) measured 26 Watts into 8 Ohms;
45.5 Watts into 4 Ohms
(ref 1% THD+N at 1kHz)

Power bandwidth at rated power into 8 Ohms  10Hz - 47kHz (-3dB), 20Hz - 25kHz (-1dB)
 Power bandwidth at rated power into 4 Ohms 12Hz - 40kHz (-3dB)
Total harmonic distortion and noise at 8 Ohms  100Hz: 0.043%;
1kHz: 0.047%;
5kHz: 0.061%;
10kHz: 0.085%;
20kHz: 0.125%

Total harmonic distortion and noise at 4 Ohms  100Hz: 0.066%;
1kHz: 0.071%;
5kHz: 0.094%;
10kHz: 0.129%;
20kHz: 0.181%

Signal to noise ratio in dB  "A-weighted": 87dB; 22Hz-22kHz "Q-pk": 80dB
Bias type  Class Ab; Bias current: 60mA (approx.)
 Input sensitivity for rated output 575mV rms
 Short circuit protection  Fuse and power supply shut-down
(short circuits should be avoided to prevent
component stresses)
Fuse  F2A 5mm x 20mm
(glass "quick-blow" fuse rated at 2A)

 Power supply 48V DC, 120 Watt - self adjusting to AC mains
100V - 240V, 47 - 63 Hz;
IEC cord supplied

Size (approx.) Amp W105 x H55 x D205 mm;
Power supply W65 H40 D170 mm
