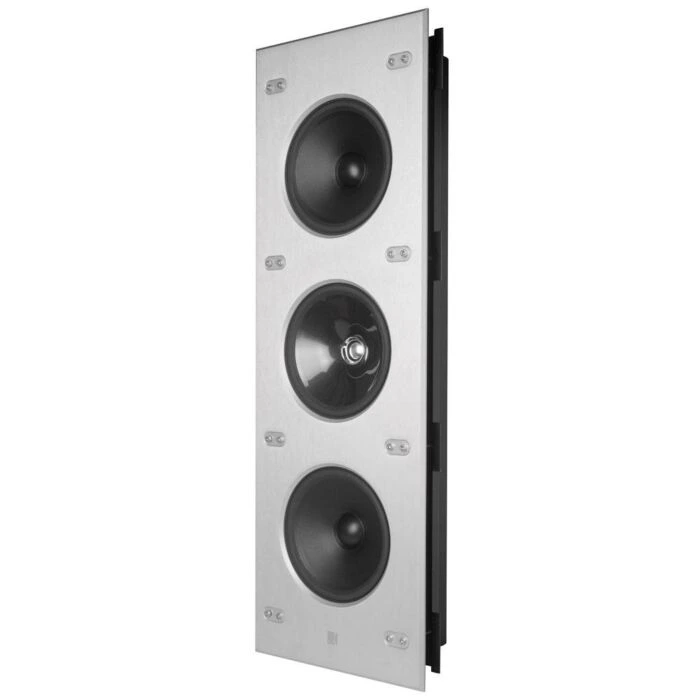

KEF Ci9000ACE in-wall speaker

 The in-wall Ci Series 9000ACE from KEF is a innovative new advance into custom installed loudspeakers. The 165mm (6.5in.) Uni-Q® driver array brings out the full emotional depth and texture of vocals, whether sung, shouted, spoken or whispered - hardly surprising, since it’s exactly the same unit as you’ll find on the XQ series. On either side, a matching pair of long throw bass drivers with ultra-low distortion motors for low frequency response that’s as lucid as it is gutsy - and thanks to KEF’s Acoustic Compliance Enhancement technology, (ACE) what you actually hear is a level of bass extension that’s normally only obtainable with much larger speakers.

Ci Series 9000ACE comes with two grille options: The pictured black cloth covered grille and a white overhanging grille. A grille for painting or covering is also available.

The new Ci Series 9000ACE.
More range, more depth. More alive.
Features and Benefits

Purpose built for flush mounting into walls, the 3-way, Ci9000ACE combines 150W power handling and 88dB sensitivity. A 165mm (6.5in.) polypropylene cone midrange unit with a coincident mounted, twin neodymium magnet, 19mm (0.75in.) aluminium dome, high-frequency unit and two 165mm (6.5in.) bass drivers in a sealed back-box. HF output can be increased through alternative terminal connection to compensate for grille coverings.


• Flagship Ci product featuring ACE technology
• Sealed enclosure
• 3 grille options to suit cosmetic application
• 19mm (0.75in.) aluminium dome tweeter with Neodymium magnet (Uni-Q)
• 165mm (6.49in.) polypropylene MF Unit (Uni-Q)
• 2 X 165mm (6.49in.) polypropylene LF Units
• ACE technology providing extended frequency response from LF unit
• Nominal impedance 8 ohm (Min 3.2Ω)
• Recommended amplifier 30-150W
• Machined aluminium front baffle
• Steel mounting bracket


The Ci9000ACE is best suited for high quality music and home theatre applications here hi-fi performance is required, such as:

• Multi Room systems
• Home Theatre systems
• Lounges, Bars, Boutiques
• Boardrooms & Offices

Model     Ci9000ACE
Nominal Impedance     8Ω
Sensitivity (2.83V/ 1m)     88dB
Frequency Response +/-6dB
With back can/rear enclosure     60 - 27kHz
Crossover Frequency     350Hz, 3kHz
Drive Units (LF / MF / HF)     2 x 160mm / 160mm / 19mm
Recommended Amplifier Power     30-150W
Features     Three-way Uni-Q Array / Aluminum Baffle & Integrated Back Box
Product External Dimensions
(Height / Width / Depth)     700mm (27.56in.) / 252mm (9.92in.) / 105mm (4.13in.)
Cut-out Dimension
(Height / Width)     660mm (25.98in.) / 209mm (8.23in.)
Mounting Depth from Surface
(Product only / With back can)     - / 95mm (3.74in.)
