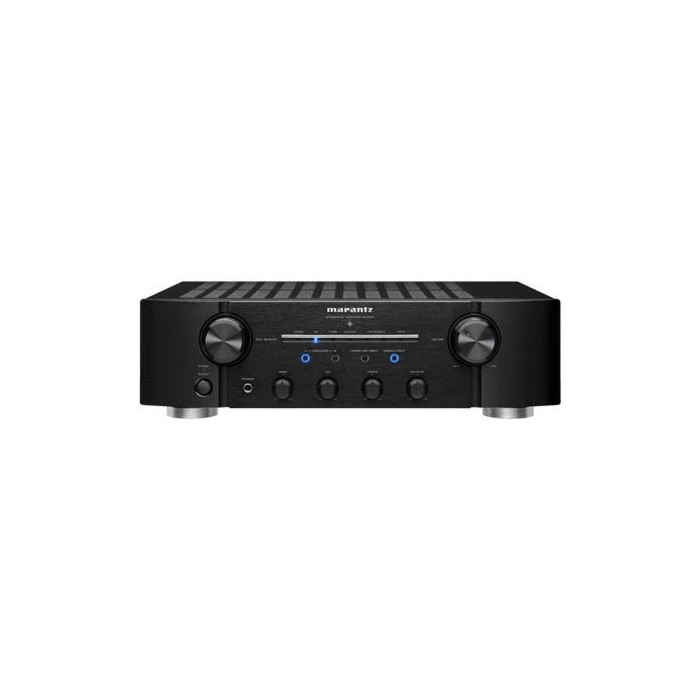

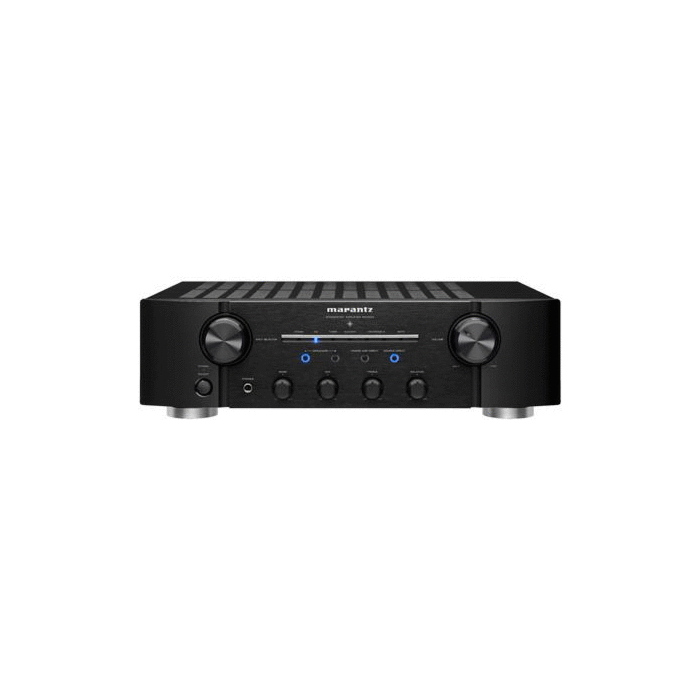

Marantz PM7004 integrated amplifier

Marantz PM7004Marantz PM7004

More Views

  • Marantz PM7004
  • Marantz PM7004 rear

Click on the image to enlarge and zoom.

This product is no longer available

Try these alternatives...

A refined and flexible integrated amplifier, the Marantz PM7004 packs a substantial 70W per channel into 8 ohms with current feedback for superb sound quality. The internal symmetrical circuits are all constructed with discrete components for better sound, with Marantz's famous HDAM pre-amp modules also benefiting from current feedback for excellent sound quality. In addition to the usual bass and treble tone controls, a midrange tone control has been in order to get the best from compressed MP3 files - of course, source direct is available to bypass the tone controls completely for the best quality recordings. Two sets of speakers can be connected so that two rooms can be supplied with high quality audio, meanwhile a moving magnet phono stage gives access to vinyl record replay for those enthusiasts with a turntable. A powerful yet high quality audio amplifier, offers great value too.
Specifications Power Output (8/4 Ohm RMS) 70/100W
Frequency Response 5Hz-100kHz (+-3dB)
Total Harmonic Distortion 0,0002%
Damping Factor 100
Input Sensitivity: MM 2.2mV / 47kohm
Signal to Noise Ratio: MM 85dB
Input Sensitivity: High level 200mV / 20kohm
Signal to Noise Ratio: High level 88dB
Input sensitivity: Power Amp Direct In 1.6V/16kohm
Signal to Noise ratio: Power Amp Direct In 106dB
Connections Audio Inputs 6
Phono Input: MM
Audio Outputs 2
Power Amp Direct In
Gold Plated RCA sockets on CD
Speaker A/B
Number of speaker terminals 4
Marantz remote bus
Headphone Output
iPod input
Features Channels 2
Current Feedback Topology
HDAM version SA3
El Power transformer
High Grade Audio Components
Customised Components
Symmetric PCB layout
Aluminium extrusion heat sink
Tri Tone Control (Bass/Mid/Treble)
Balance/Bass/Treble controls
Circuit details Linear Drive Power Supply
Shottky diodes
Input buffer amp on all inputs
Source direct
Power Amp Direct
Standby mode
IR remote control included?
W x D x H
 440 x 365 x 127mm
Weight  10.5kg
