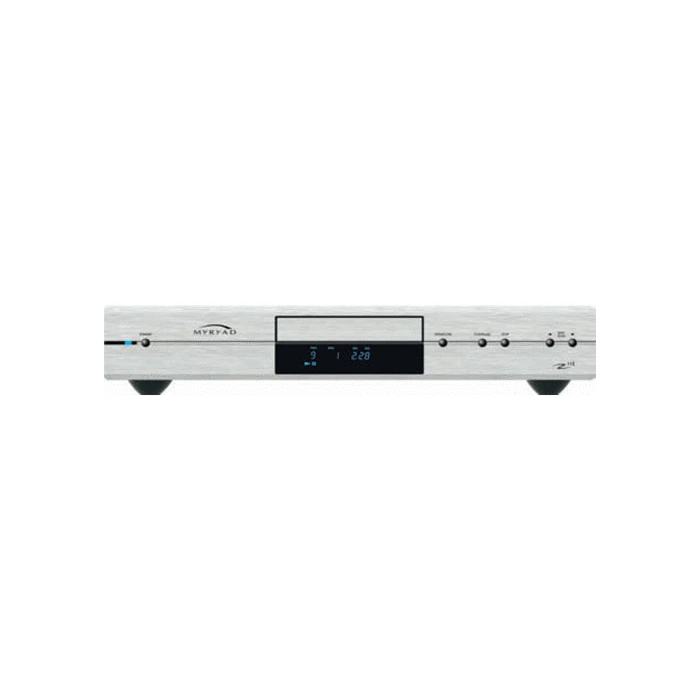

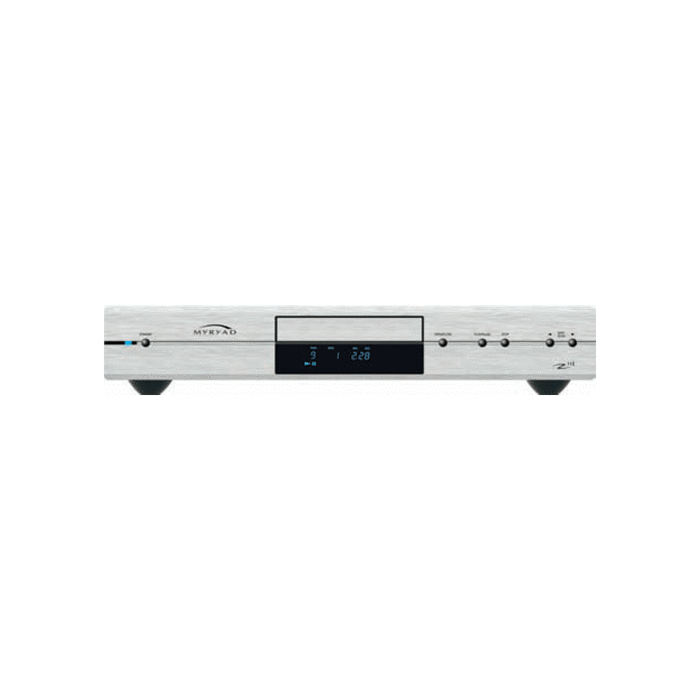

The Z-Series CD Player sounds as good as it looks with seven separately
regulated power supplies, enhanced DAC decoupling and generous reservoir
capacitors deliver superior bass clarity and impact, ultra-wide soundstaging
and brilliant mid-range focus and detail. The Z114 has been introduced to
carry on this high tradition of sound quality. To maintain the audio
performance the Digital-to-Analogue Converter chip and other audio circuitry
are unchanged from it's predecessor, but the PCB layout has been improved
and it has a new disc loader and traverse mechanism.
-
Specifications:
• Plays 120mm or 80mm CD, CD-R and CD-RW
• Digital-Analogue converter: Cirrus Logic 24-bit, 192KHz delta-sigma with
dual differential outputs.
• Regulated power supplies: Seven, each purpose designed
• Audio op-amps: Two: FET, extra-wide band, high speed
• Audio output coupling: Direct coupled (with DC servo)
• Frequency response (20Hz - 20kHz): ±0.5dB
• THD (1kHz): 0.0025%
• Signal/noise ratio (A-weighted): 105dB
• Output level at 0dB: 2.3Vrms
• Digital output: Co-ax 75 ohms to SPDIF std
• Dimensions (WxHxD): 436 x 78 x 286mm
• Weight (net): 5.0kg
• Natural Silver fascia with Silver-Grey casing or Satin Black fascia
with Black casing
-
-
