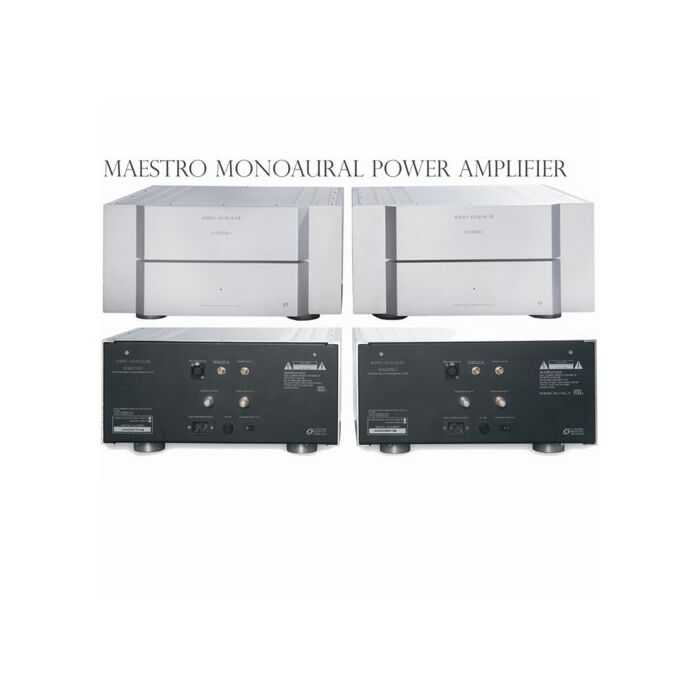

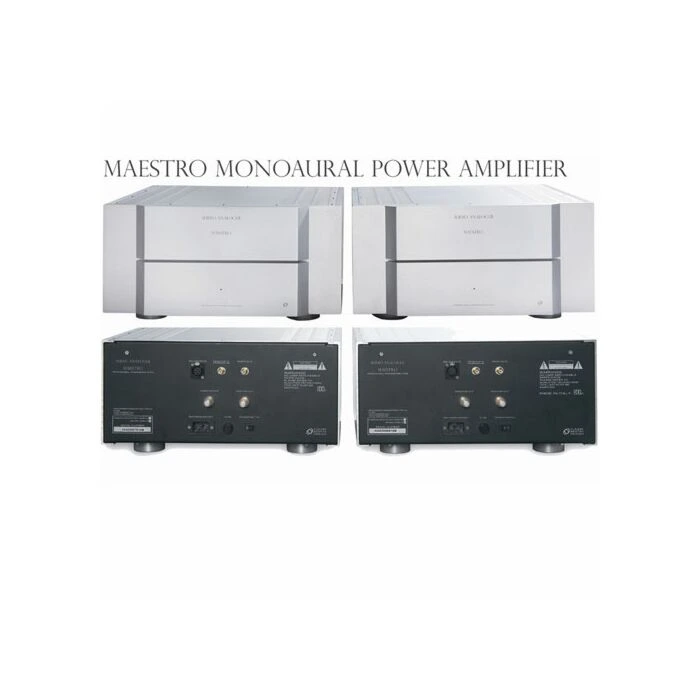

DetailsThe basic structure of the amplifier Maestro SE Monoblock is the same used in the precision balanced amplifier used in the laboratories. It is made of three different amplifiers. The first two must amplify in tension the balanced signal and the third one must supply the necessary current amplification to drive the speakers. This kind of structure has two important benefits: the first one is a high immunity to the disturbs, while the second one is the possibility to improve each amplification stage. The separation between the gain in tension and of the gain in current permits to realize class A tension amplifiers made with low power components, so to obtain a frequency response up to about 500kHz. Such frequency extention gives the possibility to mantain the phase errors to a very low level. The power section has been designed to obtain a high gain in current and not in tension. Thanks to this solution, it is possible to keep the frequency response at full power around at 200kHz. Also the bass frequency extention has been realised with care applying an off-set recover circuit able to go down to 3Hz. Due to its two stages configuration, the amplifier Maestro Monoblock does not have a global feedback between inputs and outputs. POWER STAGE The Maestro Monoblockís nominal output power is of impedance. This power goes up to 800W@2ohms. The protections starts to work at around 1000W with a load of 1ohm(if your house system can support it!) To obtain these kind of power levels the supply section has been overdimensioned. In fact, have been used two toroidal transformers for a total of 1406W. Each power branch is rectified from a diodes bridge, with 50A components and the filter section contains 8 electrolytic 15000F capacitors for a total of 120000 F. Furthermore, also the supply of the low power section has been realized one bridge for each branch and filtrated with two 15000F capacitors. To maintain a low output impedance has been realised 10 pairs of bipolar transistors whom low distortion level are guaranteed by the producer. Their polarization current permits to get a class A working up to about 10W. The current pass trough some copper bars. Each earth converges to a sole junction (star configuration) realised with a copper plate half a millimetre thick that has also a shielding function. Obviously, such big quantity of different parts is used to supply only one channel of your stereo system! PROTECTIONS An amplifier able to supply more than 30 ampere must be well protected. The amplifier Maestro Monoblock has a section exclusively dedicated to this function. At the moment of the switching on, the filter capacitors are loaded trough two power resistors to limit the power comsumption. Once the supply voltage has passed the critical phase, the resistors are excluded by two 40A relË. These relay are able to stop the supply of the power amplifier and have been used to replace the fuses. The only existing fuse on the Maestro Mono is used to protect the control board and hasn't any effect to the audio signal. There are also others protections that are used to control the presence of DC power on the speakers, the AC power voltage drop and the current absorbtion surplus.
Model Audio Analogue Maestro SE Monoblock Specifications Output power (20 - 20000Hz, 8): 200 W
Output power (20 - 20000Hz, 4):400 W
Output power (20 - 20000Hz, 2): 800 W
In impedance: 47k joined in AC for each phase to the common.
Nominal sensitivity when in balanced mode:
1Vpp between the 2 in phases for maximum power.
Nominal sensitivity when in unbalanced mode:
2Vpp between 1 phase and the common for maximum power.
Frequency range: 2 - 100000Hz
Global harmonic distortion: 0.01% @ 10W, 1kHz.
Ins:2 RCA inlets and 1 XLR connector
Nominal power supply: 230VAC 50Hz
Maximum absorbed power:1200W
Price is for a single monoblock
