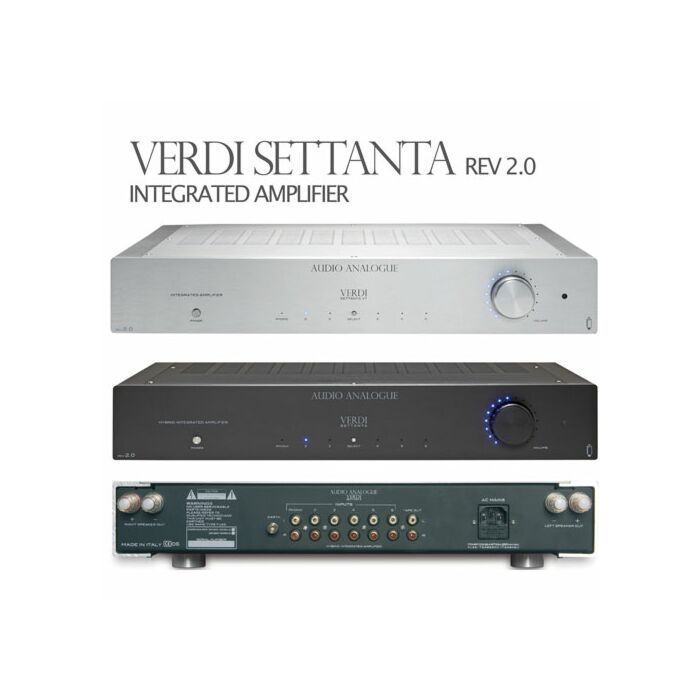

DetailsVerdi Settanta establishes a new reference in the category of high-quality and high-versatility stereophonic products. Verdi Settanta provides circuital solutions with no compromises and features capable to satisfy advanced users demands. We equipped Verdi Settanta with a hybrid 70 Watt/channel amplifier with line and phono in, high-performance circuits and separated circuit sections for each channel. Verdi Settanta solutions make the unit a valuable and durable investment. Features Toroidal transformer analog power supply with two separated lines, one for the solid section and one for the tube section. Analogical pre-amplifying section with tubes, large bandwidth and low feedback. High-performance preamplifier for the best connection between sources and the power section. Low IMD, high slew rate power section. Calibrated and integrated electronic protections for electric overloads and overheating prevention to minimize sound distortion. High-precision MM/MC phono section. Top-quality passive components. Integrated-resistance network volume controls with no buffer for maximum sound transparency. Microcontroller system control. The new Verdi Settanta Integrated Amplifier represents an accomplished expression of Audio Analogues new strategy aimed at giving users the best quality yet taking into the due account their budget. Every operative feature and performance of the Verdi Settanta is optimized to maximize the customers satisfaction, sound quality, manufacturing and assembly perfection, look & style and performances, together with the famous family look and ease of use common to all Audio Analogue products. The user perceives a very high class: great contents, superb sound and long-lasting with no wearouts or performance detriment. The new, totally remote-controlled hybrid circuit delivers crystal-clear power up to 70W per channel on 8 Ohm, with dynamic headroom sufficient to satisfy the requirements of every speaker in the same price range and beyond. Tha power stage is made around the now usual LM3886T power packs (same as those used on the famous Jeff Rowland amplifier, Concentra): they are BJT integrated power devices albe to deliver currents up to 12A and perfectly protected agains overloads and overheat. The smart protections used in these deviced allow for, in normal operation conditions, the deliver of huge power without limiting the dynamics of the output signal. The hybrid preamplifier circuit is made using a 6922 double triode per channel as gain stage and balancer, to drive the power stage in balanced mode. It operates a perfect interface between the integrated bufferless resistor network potentiomenter and the power amps input, contributing to the balanced yet vivid and crisp sound of the amplifier. Solid state input selectors allow for indefinite best quality performance (no sound detriment due to metallic contacts ageing and wear-out). The MM/MC phono stage allows for the use of avery cartridge with more than 0,2mV output voltage. Few amplifiers in this price range have this feature. The new remote control also allows users to control the companion CD player Rossini, as well as the Primo CD player, the Primo Tuner VT and the companion tuner of the Verdi Settanta when available. Of course, all the main features of the amplifiers can be used by the front panels simple controls. Great care has been used in the passive and active components selection, as usual for Audio Analogue.
Model Audio Analogue Verdi Settanta integrated amplifier Specifications Technical Brief
1kHz, both channels driven
70W p.c. - 8Ohm
1kHz, both channels driven
100W p.c. - 4Ohm
Noise level 2
Line stage gain 12 dB
Power amp gain 26 dB
Phono gain 40dB (MM) 60dB (MM)
Line input impedence 47KOhm
Phono input impedence 47KOhm (MM) 100Ohm (MC)
Size (mm): W. 445, D. 405, H. 85
