See nothing, hear everything

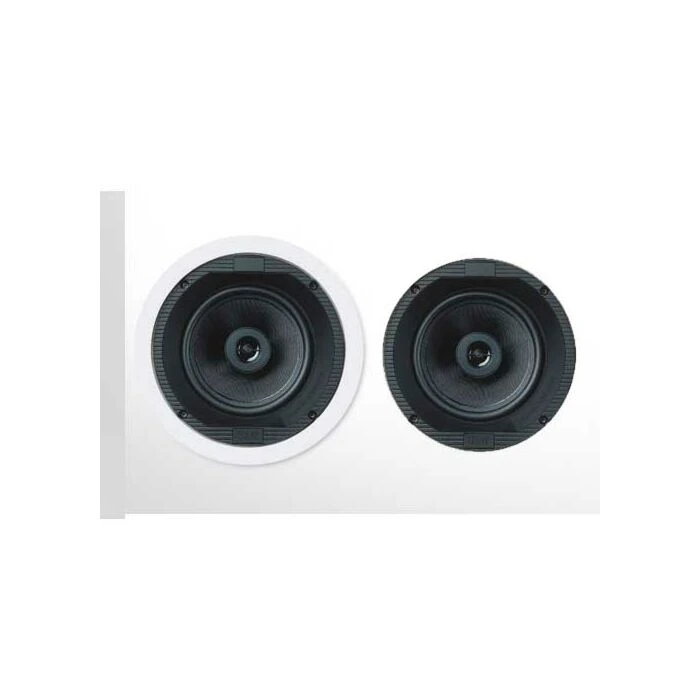

CCM 616 is a high performance ceiling speaker that’s simplicity itself to install and use. A 2-way design, featuring a 165mm (6½ in) woven glass fibre cone bass/midrange driver and a coaxial Ultra-12 tweeter in a neat circular ceiling mount chassis, the CCM 616 incorporates quick and easy swing-out dog fixings. It is a perfect speaker for those indulgent extra locations - the bathroom, the kitchen - that define the real luxury of custom installed audio.
Architectual and Engineering Specifications
The loudspeaker system shall be of the mono-amped 2-way type comprising of a single flush mountable circular
enclosure containing one 6.5in bass-mid driver with woven glass fibre cone and one co-axially mounted 1in Ultra 12
tweeter. Performance specifications of a typical production unit shall meet or exceed the following:
Frequency response shall be 50 – 20kHz ± 3dB. Nominal impedance shall be 8 Ohm.
Total power handling shall be 130W continuous into 8 Ohm on unclipped programme. Sensitivity measured with 2.83V at 1-meter distance on axis,
mean averaged between 50 – 20kHz shall be 89dB. External dimensions shall be 232mm (9.1in) diameter x 107mm (4.2in) depth. Total weight shall be 1.4kg (3.0lb).
The loudspeaker system shall be the B&W CCM 616. No other system shall be acceptable unless the above combined
performance are equalled or exceeded.
B&W CCM616 Drive Units 1x ø25mm (1 in) ultra-12 high-frequency
1x ø165mm (6.5 in) woven fibreglass mid/bass
Coaxial Ultra-12 tweeter
Recomended Amp Power 20W - 130W Sensitivity 89dB spl (2.83V, 1m) Impedance 8Ω Frequency Responce 50Hz-20kHz ±3dB on reference axis Dimensions Diameter: 232mm Min Depth 103mm Weight 1.4kg
Sold as a pair
