Bowers & Wilkins CWM LCR7 In-Wall Loudspeaker

Bowers & Wilkins CWM LCR7 In-Wall Loudspeaker

Sorry, This product is no longer available

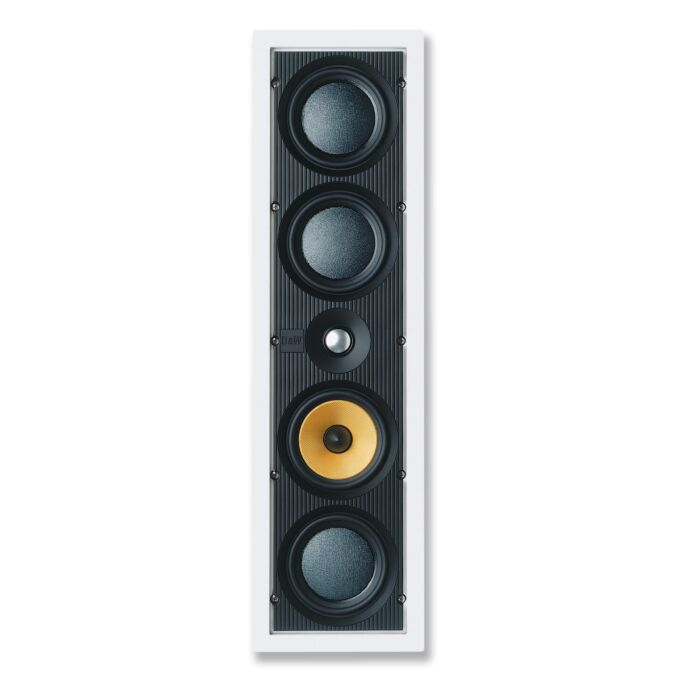

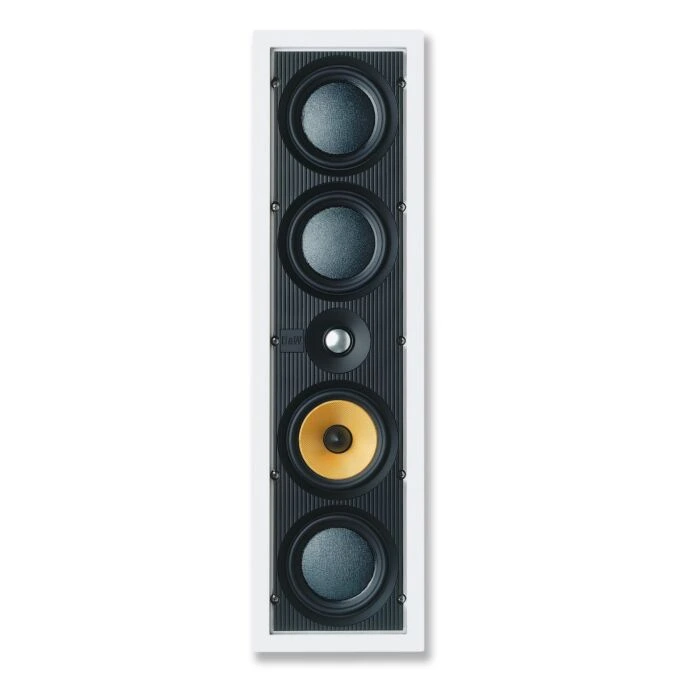

B&W CWM LCR 7 in-wall speaker

B&W CWM LCR7 are high performance in-wall speakers ideal for both high performance home cinema and music systems.True 3-way in-wall speakers like the B&W CWM LCR7 are unusual. Featuring cutting-edge B&W technology, the LCR7 features twin 100mm (4 in) mica cone bass drivers, a 100mm (4 in) woven Kevlar cone midrange driver and a Nautilus tube-loaded 25mm (1 in) aluminium dome tweeter.

The sound of the CWM LCR7 communicates every audio nuance from low bass to extreme treble and from whispering quiet to sound levels equivalent to live music. The mica bass drivers provide the low frequency snap characteristic of any really good loudspeaker, whilst the Kevlar midrange driver sounds both warm and clear. The Nautilus inspired tweeter combines fine detail with relaxed neutrality.

Sold singly.



 Technical features Nautilus™ tube-loaded tweeter
Woven Kevlar® cone midrange
Paper/mica cone bass
Description  3-way in-wall speaker system
 Drive units 1x ø25mm (1 in) Nautilus™ tube-loaded tweeter
1x ø100mm (4.0 in) woven Kevlar® cone midrange
3x ø100mm (4.0 in) paper/mica cone bass
 Frequency range -6dB at 54Hz and 30kHz
Frequency response
65Hz – 22kHz +/-3dB on reference axis
Frequency response  85dB spl (2.83V, 1m)
Nominal impedance  8Ω (minimum 3.6 Ω)
Crossover frequencies  2x 300Hz & 3.2kHz
                                               Recommended amplifier power                                            20W - 150W continuous into
8Ω on unclipped programme
 Frame size 625mm (24.6 in) x 175mm (6.9 in)
 Cut-out size 600mm (23.6 in) x 150mm (5.9 in)
Min depth req 101mm (3.9 in) from wall surface
Net weight 4.2kg (9.3lb)
Finish Semi-matt white suitable for customising or pre-painting (paint mask included)
Accessories Pre-mount kit for new construction (PMK LCR7)
Back Box (BB LCR7)
