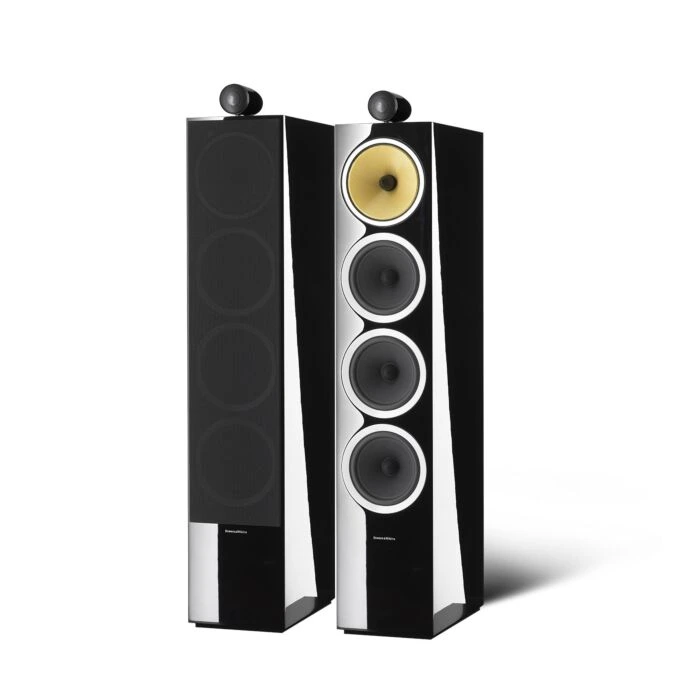

DetailsThe flagship model of the CM S2 series is the CM10 S2. The original CM10 was the first speaker to feature both 'Tweeter On Top' and 'Decoupled Double Dome Tweeter', allowing for an astoundingly accurate high-end response. This exceptionally well-developed design philosophy and innovative engineering remains in the CM10 S2, while various internal elements of the speaker have been upgraded, thus taking the overall performance level of the CM10 even higher than before.Key changes to the internal technology include the addition of a Mundorf EVO capacitor, which delivers a simplified and precise crossover. All internal wiring utilises high quality Van den Hul cabling and the terminal tray of the loudspeaker is built from a nickel-plated material. Even the already-superb driver units have had an upgrade, seeing the addition of specialised Anti Resonance Dust Plugs.These internal component upgrades allow the CM10 S2 to provide a superlative performance with a level of sonic integrity never before seen at this price point. But it's not only the internal technologies that have had a make-over; the aesthetic appearance of the CM10 S2 now consists of minimalistic fixings with no visible screws, a redesigned protective speaker grille and the choice of three high quality finishes (available across the entirety of the CM S2 range). These finishes are high gloss black, satin white and the ever popular real world veneer; 'rosenut'
Woven Kevlar Yes Flowport Yes Technical features Free-mounted Decoupled Double Dome aluminium tweeter
Kevlar® brand fibre cone FST midrange
Decoupled midrange and tweeter units
Tweeter on top
Description 3-way vented-box system Drive Units 1x ø25mm (1 in) Decoupled Double Dome aluminium high-frequency
1x ø150mm (6 in) woven Kevlar® cone FST midrange
3x ø165mm (6.5 in) paper/Kevlar® cone bass
Frequency range 6dB at 28Hz and 50kHz Frequency response 45Hz - 28kHz ±3dB Dispersion Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Sensitivity 90dB spl (2.83V, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Nominal impedance 8Ω (minimum 3.1Ω) Crossover frequencies 350Hz, 4kHz Recommended amplifier power 30W - 300W into 8V on unclipped programme Max. recommended cable impedance 0,1 Ω Dimensions Height: 990mm (39 in) cabinet only
1087mm (42.8 in) including tweeter and plinth but not feet
Width: 200mm (7.9 in) cabinet only
366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only
364mm (14.3 in) inc. grilles and term
Net weight 33.5kg Finishes Cabinet:
Grey (Satin White only)
