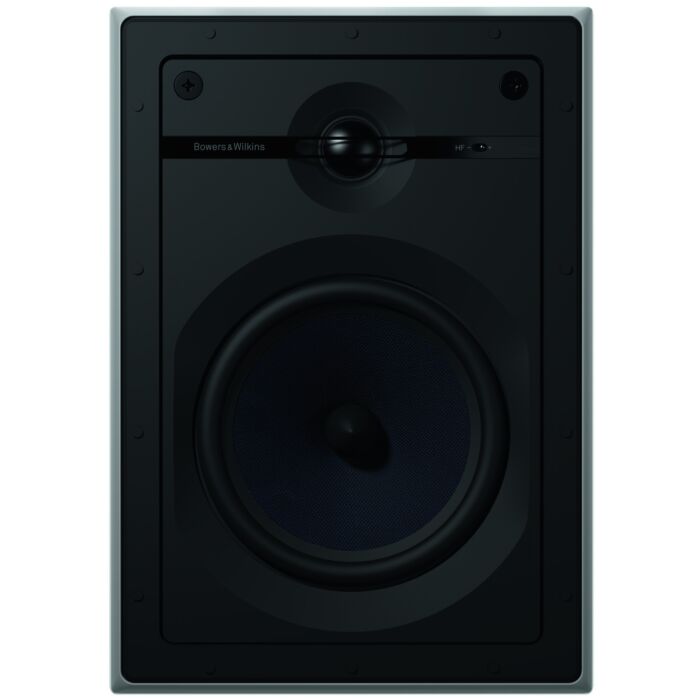

Bowers & Wilkins CWM663 In-Wall Loudspeakers

The CWM663 is one of Bowers & Wilkins more adept in-wall models and utilises a high-quality blue Kevlar bass/midrange cone. This cone sits within a die-cast chassis, providing additional rigidity which in turn results in a cleaner, more dynamic bass response. The tweeter has also been thoroughly thought-out, comprising of a light, aluminium material and incorporating a Nautilus tube to absorb unwanted sonic radiation.

A three-position high-frequency switch is integrated into the speaker itself, allowing you to adjust the sound of the speaker depending on the application or acoustic environment. It's quick and easy to install, thanks to B&W's innovative QuickDogs plug-and-play installation functionality.

Who are Bowers and Wilkins?

Bowers & Wilkins are one of the most prestigious and well-regarded hifi manufacturers in the world, claiming a vast number of awards across essentially every range of loudspeakers they release. A well-established British company, their badge can be found in top studios around the UK, including Real World and Abbey Road. Whether constructing industry-leading speaker docking systems, reference level loudspeakers, or home cinema surround sound systems - Bowers & Wilkins excel in every aspect, including aesthetic design and audio prowess.


 Description  2-way in-wall system
Drive units  1x ø25mm (1in) Nautilus™ tube
 loaded aluminium dome tweeter
1x ø150mm (6in) blue Kevlar®
cone bass/midrange
Frequency Range (-6dB) 45Hz – 50kHz
 Maximum Amp Power 25 – 150w
     Sensitivity SPL (2.83V, 1m)        88dB
 Impedance Nominal (min)  8Ω (4.5Ω)
 Frame height 315mm (12.4in)
 Frame width 221mm (8.7in)
 Cut-out height 279mm (11in)
 Cut-out width 183mm (7.2in)
 Depth behind surface 95mm (3.7in)
Protrusion 4mm (0.2in)
Pre-mount Kit PMK W6

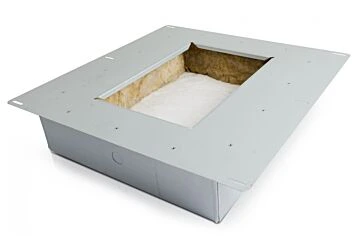

Back Box BB 6W
