Denon PMA-520AE Integrated Amplifier

Denon PMA-520AE Integrated Amplifier

Sorry, This product is no longer available

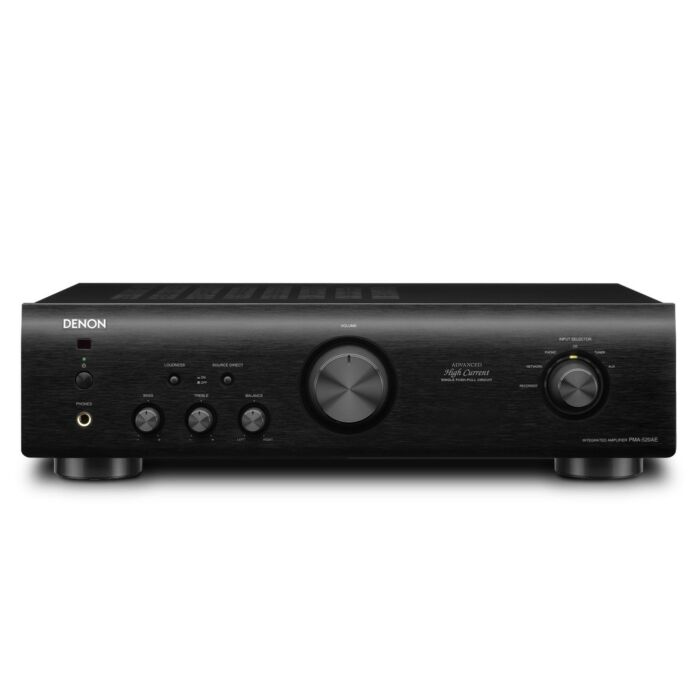

Denon PMA-520AE Integrated Amplifier

Having over 100 years in the design and manufacture of home entertainment products, Denon have a unique combination of experience, technological expertise and strong branding to ensure their products are always at the cutting edge of technology whilst being simple to operate and offering exceptional value for money.

Denon's PMA-520AE is an integrated amplifier that utilises a High-Current Single-Push-Pull circuitry to accomplish the type of playback strength and detail expected from any Denon pure audio amplifier. Denon have used a relay switch for CD and phono inputs that contains an inert gas. This prevents noise that can negatively interrupt and manipulate the signal. Denon has also used specially selected robust parts, picked for their contribution to excellent sound quality. These parts include high-capacity reservoir capacitors for the power supply circuit, high-quality sound carbon resistors, and high-quality sound capacitors are also used within the amplifier. Each of the parts used within the configuration of the circuits reflects the emphasis Denon place on high fidelity. Also, to improve convenience, the remote control for the unit can also be used to control Denon CD players and network player DNP720.

Five line level inputs (CD, network player, Aux, Tuner and a Tape loop) plus a turntable input for moving magnet cartridge give lots of system building options.

A more luxurious aluminium front panel is now employed in the 520, together with larger volume and selector knobs, and a newly designed power button.



Number of Channels
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) 45 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 70 W
Total Harmonic Distortion 0.02 %
Input Sensitivity: MM 2.5 mV / 47 kohm
Signal to Noise Ratio: MM 84dB
Input Sensitivity: High level 110 mV / 30 kohms
Signal to Noise Ratio: High level 105dB
Treble Control ± 8 dB at 10 kHz
Bass Control ± 8 dB at 100 Hz
Advanced HC-TR single push pull circuit  Yes
Wide range amplifier  Yes
High current dynamic power supply  Yes
Power amp discrete construction  Yes
Micro processor auto off  Yes
Solid Heat Sinks  Yes
Source Direct  Yes
Adjustable elements                Balance / Bass / Treble / Loudness
 Analogue Audio Inputs  6
 Audio Outputs  1
Headphone Output Yes
Power Consumption in W 185
Standby Consumption in W 0.3
Maximum Dimensions (W x D x H) in mm 434 x 308 x 121
