Graham Slee is a small, enthusiastic manufacturer of realistically priced, high performance phono stages and headphone amplifiers, designed and built by hand in Yorkshire since 2003. Very positively reviewed by UK and international magazines, demand for these products has been overwhelming as the world's hifi enthusiasts can't believe the performance on offer for the price asked.
Each unit is designed by owner/ engineer Graham Slee and then hand constructed by two skilled electronics engineers before being thoroughly tested to check it meets it's specification and is 100% reliable.

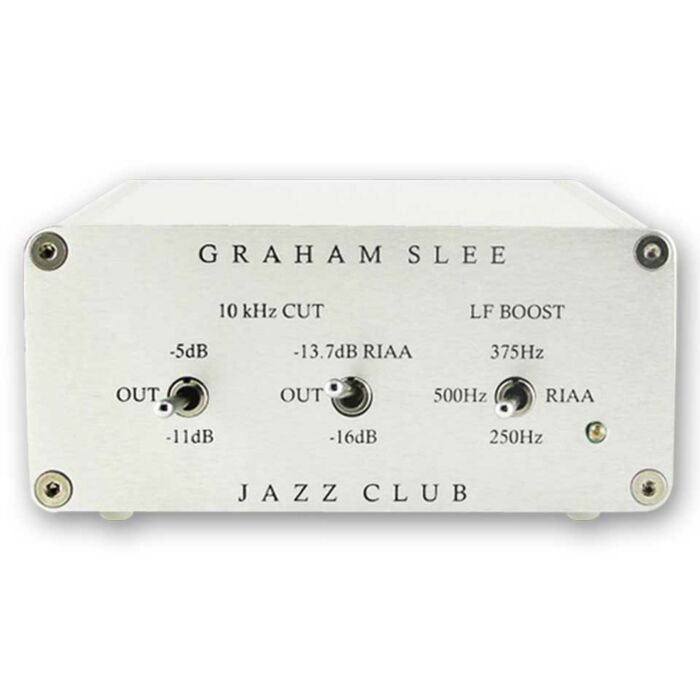

The ideal phono stage for vinyl archivists or lovers of 78 rpm records, the Graham Slee Jazz Club phono stage has multiple equalisation settings to frequency correct any record curve in existence.
Way before the RIAA became standard in 1954, record companies used their own equalisation as they saw fit - leading to multiple 'standard' recordings out there. But don't worry, this phono stage has eight different equalisation sets for 78's alone, not to mention EP's, 45 rpm singles and of course 33 1/3 prm LP's.
Using the switches on the front panel, you get instant aural feedback on the EQ setting applied, allowing you to get the most natural sound possible.
When set to RIAA EQ, it is exactly the same phono stage as the Graham Slee Era Gold V. The musicality is superb, even antique records are imbued with a freshness and open sound quality that defies belief.
Input range 2mV to 10mV Output (for input range) 252mV to 1,260mV (1.26V) Maximum input 39mV rms Maximum output 4.914V rms Gain 42dB (126) at 1kHz Input impedance 47k Ohms plus 100pf Output (driving/source) impedance 1.2k Ohm Recommended load impedance 10k Ohm or greater Noise at output -65dB CCIR Q-pk Distortion 0.02% EQ curve accuracy < 0.5dB Channel balance 0.2dB Channel separation 64dB Size (approx.) W: 107 x H: 50 x D: 180 (mm)
Providing your item is in stock, the order is usually dispatched within 24 hours. Please remember that postage and packing is completely free for orders over £50*. Out of stock items will be dispatched as soon as they become available, out of stock items can take between 4 to 21 days for dispatch.
Deliveries usually take 1-3 working days. The majority of orders are sent via our couriers'; Interlink Express on a next-day-delivery service. Smaller, low value or light-weight items are normally posted using Royal Mail Recorded or Royal Mail Special Delivery.
Once your product has been dispatched, you will be notified via email and sent a unique consignment number, you can use this number at http://www.interlinkexpress.com to check the status of your delivery. If you have provided a mobile telephone number, Interlink's Predict service will notify you by text (and email) of a one-hour delivery window. If the window they suggest is inconvenient, you can change the date of delivery to a later one via text or email.
*We ship free of charge to mainland UK addresses, excluding the Scottish Highlands or 'Out-Of-Reach' Scottish locations. Please consult the post-codes below to see if your location falls within this category. If you are still unsure, please contact us on 01432 354921. We also ship to Northern Ireland, Channel Islands, Scilly Isles, Scottish Isles and Scottish Highlands, however delivery to these locations will incur a charge and can only be sent via a 2-day service.
Shipping Costs Mainland UK (Next-Day) Offshore/Out-of-reach (2-day)Northern Ireland, Channel Islands, Isle of Man, Scottish Islands, Scilly Islands Republic of Ireland (2-day) Under £50 Orders £7.50 £12.50 £15.00 Over £50 Orders FREE £19.99 £29.99 Surcharge Orders £50.00 £69.99 £79.99 Saturday Delivery £12.99 N/A N/A Sunday Delivery £12.99 N/A N/A Saturday by 12 Delivery £35 N/A N/A
Post codes exempt from the free delivery service include:
Scottish Highlands Post Codes: AB30-38, AB41-42, AB44-56, FK17-99, G83, IV1-28, IV30-39, IV52-54, IV63, KW1-14, PA21-33, PA34-40, PH15-26, PH31-41, PH49-50
Islands Post Codes: HS1-9, IV40-51, IV55-56, KA27-28, KW15-17, PA20, PA41-49, PA60-78, PH42-44, ZE1-3
Northern Ireland: All BT postcodes
Channel Islands Post Codes: JE, GY
Scilly Isles Post Codes: TR21, TR22, TR23, TR24, TR25
