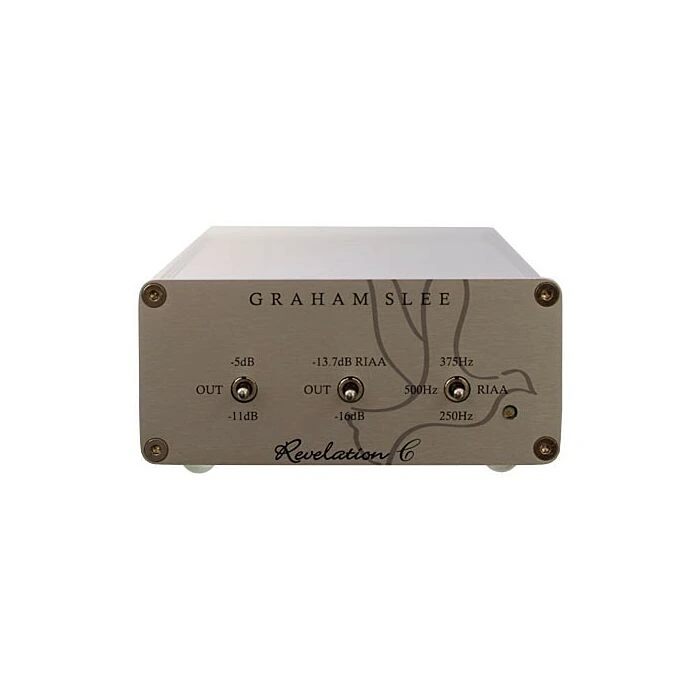

Graham Slee Revelation Phono Stage
Each unit is designed by owner/ engineer Graham Slee and then hand constructed by two skilled electronics engineers before being thoroughly tested to check it meets it's specification and is 100% reliable.
For enthusiasts with a mix of vinyl records dating from pre-war to modern day, the Graham Slee Revelation phono stage is able to equalise them all perfectly.
Front panel switches allow you to switch in a variety of equalisation settings to give the required frequency response correction. When set to RIAA, the performance is identical to the Graham Slee Reflex phono stage.
Who is Graham Slee?
Graham Slee is a small, enthusiastic manufacturer of realistically priced, high-performance phono stages and headphone amplifiers, designed and built by hand in Yorkshire since 2003. Very positively reviewed by the UK and international magazines, demand for these products has been overwhelming as the world's hifi enthusiasts can't believe the performance on offer for the price asked.
Input range 0.2mV to 1.0mV Output (for input range) 252mV to 1,260mV (1.26V) Maximum input 3.9mV rms Maximum output 4.914V rms Gain 62dB (1,260) at 1kHz Input impedance 100 Ohms Output (driving/source) impedance 1k Ohm Recommended load impedance 10k Ohm or greater Noise at output -62dB CCIR Q-pk Equivalent input noise (EIN) -124dB Distortion 0.02% RIAA accuracy <0.5dB Frequency response 20Hz - 200kHz (flat, corrected to RIAA) Channel balance 0.2dB Channel separation 64dB Size (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks
