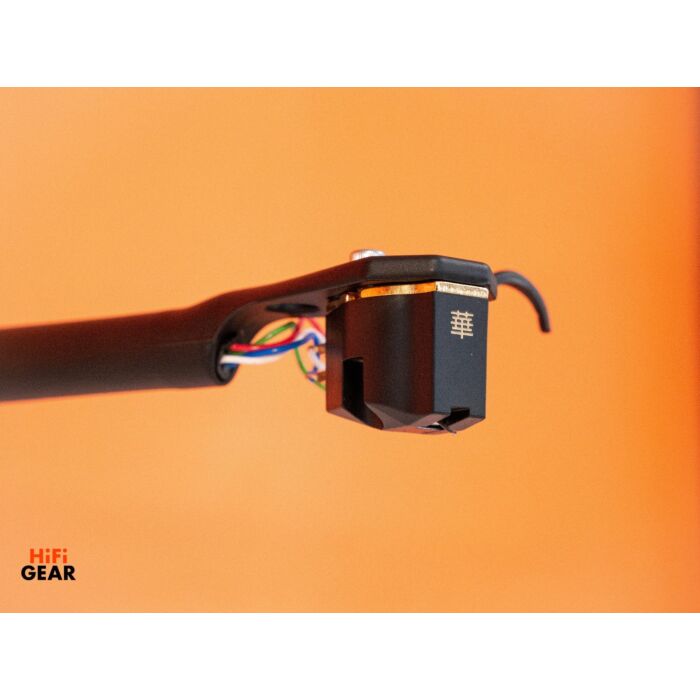

Hana MH High Output MC Cartridge

Free UK Delivery



Hana MH High Output MC Cartridge

One of the world’s best High Output Moving Coil cartridges, the MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.

  • High Output for easy pairing with any MM phono stage
  • High precision Nude Microline stylus
  • Injection molded from Delrin© Polymer Body
  • Cold Annealed Alnico based magnetic electro-motive circuit
  • Machined brass cap providing constrained mode layer damping
  • Heavier 9.5 gram weight for expanded compatibility with a wider range of tonearms

The HANA M range is the advanced models of the now world-wide renowned HANA E and S ranges of Moving Coil cartridges, famous for their high-quality sound reproduction, ease of setup and use; and competitive pricing. The HANA-ML is the low output moving coil cartridge option Low output option, with Micro-line stylus profile. This cartridge is designed to be used with an MC phono stage or MC step-up device + MM phono stage.

There are several advanced product features (Over E and S range HANA Moving Coil cartridges) that take the sound fidelity and musical enjoyment to new heights, continuing to offer a superb sound quality v. price at its higher price point. The stylus design is ‘Micro-Line’ (a shape that more closely follows the cutting head when the metal master is being produced), fitting more precisely into the vinyl groove to capture the very smallest details, offering better frequency reproduction and less distortion.

The Hana M Series cartridge bodies are made from black polyoxymethylene (POM) which is a very hard, extremely rigid and very strong thermoplastic. Excel uses a particular formulation of POM manufactured by DuPont that sells under the trademarked name ‘Delrin’, a material with much improved mechanical characteristics such as better resonance damping and hardness.

Parts such as the front yoke, centre and rear components of the magnetic electro-motive circuit and wires are Cryogenic processed, this is a 'cold annealing' process at near absolute zero temperature, it restructures metals at the molecular level, resulting in lower sound distortion). The result is more precise and musical sound quality. Very high-quality copper wire has been selected for MH/ML moving coils, offering a greater clarity of sound, thanks to its lower distortion of the musical signal. There are captive threaded nuts for headshell fixing screws, these are built into the cartridge body offering easy mechanical fixing to the Tonearm headshell. There is a gold plated copper resonance plate integral with the cartridge body, that further reduces distortion from vibrations.

Who is Hana?

'Hana' is a Japanese manufacturer of quality high output and low output moving coil cartridges, employing innovative technological measures and impeccable craftsmanship to form a unique and dynamic listening experience when combined with a turntable of equal calibre. The Hana brand was developed in 2015 by established Tokyo-based 'Excel Sound Corporation' who have over half a century's worth of hifi cartridge manufacture experience.

Hana (華) is Japanese for 'brilliant and gorgeous', a mantra they adapt to every element of their cartridge construction.

Stylus Type  Nude Microline
 Cantilever System Aluminium
 Output Voltage  0.2mV
Frequency Range   12Hz to 45kHz
Tracking Force  (Recommended) 2 Grams
 Recommended Load Impedance 47kΩ
