Monitor Audio CSS230 In-Ceiling Speaker

Free UK Delivery



£305.00
Payments
Or
Loading payment button...

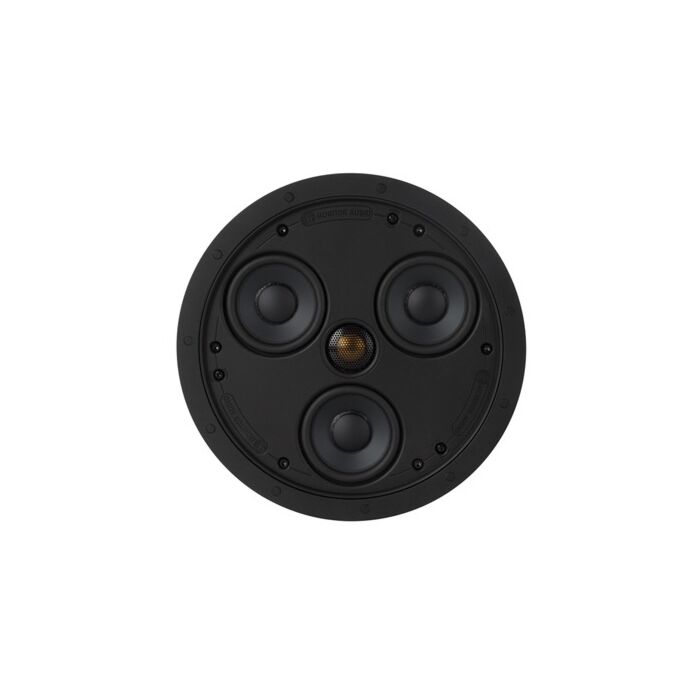

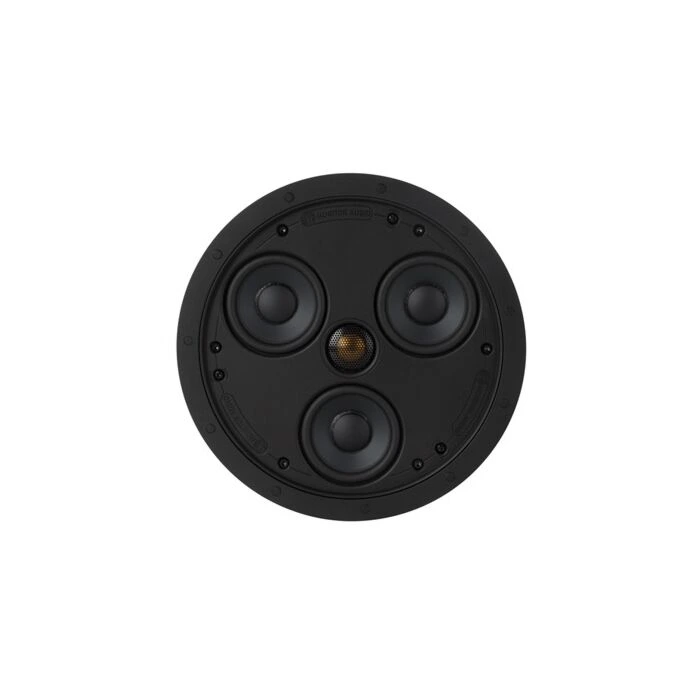

Monitor Audio CSS230 In-Ceiling Speaker

The CSS230 in-ceiling speaker is brilliantly innovative and built to offer hi-fi levels of performance in spaces where no high-quality speaker has gone before.

This speaker is perfect for use in tight ceiling spaces, especially where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high-quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

Who is Monitor Audio?

Started in 1972 by the charismatic Mo Iqbal, Monitor Audio began loudspeaker design and production using tried and tested methods available at that time - plastic cone materials, fabric dome tweeters and reflex loaded braced cabinets. The speakers were welcomed by enthusiasts both in the UK and throughout the World.

Frequency Response (-6 dB) 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
Nominal Impedance  8 ohms
Sensitivity (1W@1M)  86 dB
 Maximum SPL 103.8 dBA
 Power Handling (RMS)

40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)

Recommended Amplifier Requirements  10 - 60 W
 Drive Unit Complement 3 x 3" C-CAM cone bass-mid drivers
1 x 19 mm (3/4") C-CAM Gold Dome tweeter
 Crossover Recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Connection  Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)
Overall Diameter (Including Grille)  250 mm
Overall Depth (Including Grille)  54 mm
Cut-Out Hole Diameter 211 mm
Mounting Depth 50 mm
Optional Square Grille - Outer Dimensions 249 x 249 mm
Fixing Type 3 position Tri-Grip dog leg fixings
Construction Material ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Weight 2.88 kg (6 lb 5 oz)
Pre-Construction Bracket CB6 Pre-Construction Bracket (Purple)
