Monitor Audio WSS230 In-Wall Speaker

Free UK Delivery



£340.00
Payments
Or
Loading payment button...

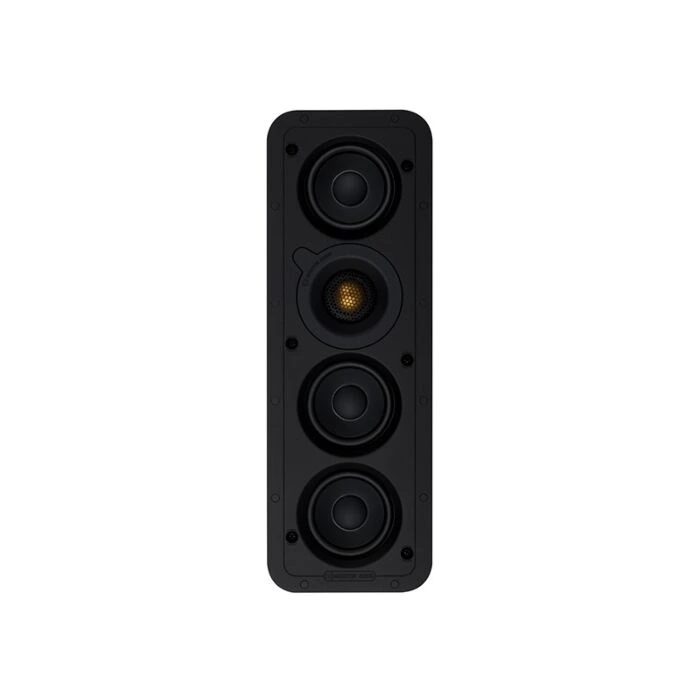

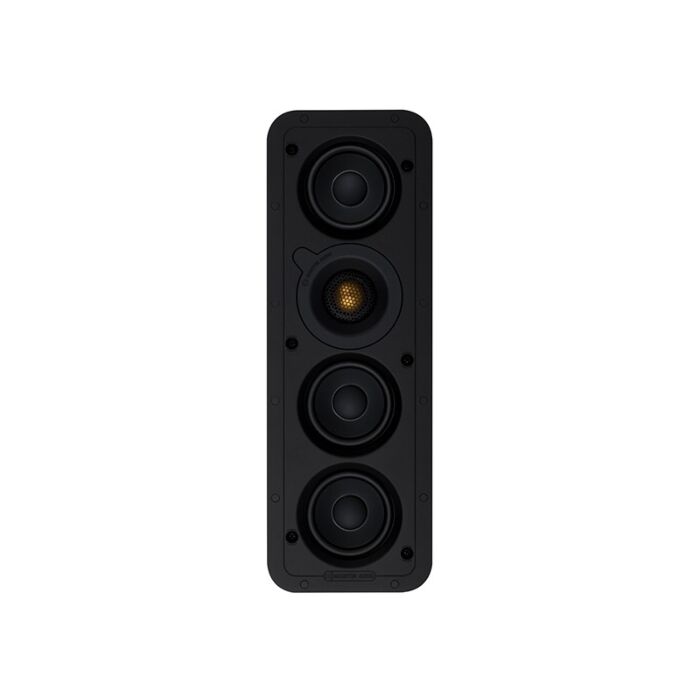

Monitor Audio WSS230 In-Wall Speaker

The mid-point WSS230 offers a step-up in performance – additions here include Monitor Audio’s renowned C-CAM metal drivers, delivering increased precision and detailed sonic characteristics.

The WSS230 makes you think again – the possibility of installation in constructions featuring 2" studs slips effortlessly into view. Mounting restricted by AVC ducts, cabling or pipework? No problem to this in-wall speaker, or any of the speakers in this range. These models can also be installed between a standard 14" stud bay when used in a horizontal (portrait) orientation. Consequently, the same speakers can be installed around a screen, keeping the same neat visuals, as well as identical L-C-R performance.

To provide protection from damage by residual masonry or building materials, Monitor Audio designed a protective cover to keep the drivers and crossover safe. And the trim-less grille not only provides protection, but it also adopts an incredibly discreet and low-profile aesthetic appearance. These covers can be painted to achieve seamless décor integration, with the supplied replacement scrim maintaining the stealthy presence of the speaker once decorating is done. Nice and neat. Super strong, magnetically attached rare earth magnets ensure long-term security, coupled with easy installation and servicing.

Who is Monitor Audio?

Started in 1972 by the charismatic Mo Iqbal, Monitor Audio began loudspeaker design and production using tried and tested methods available at that time - plastic cone materials, fabric dome tweeters and reflex loaded braced cabinets. The speakers were welcomed by enthusiasts both in the UK and throughout the World.

Frequency Response (-6 dB) 75 Hz – 30 KHz
Sensitivity (1W@1M)  87 dB
 Nominal Impedance 8 ohms
 Maximum SPL 105.6 dBA
Power Handling (RMS)  60 W Full range (100 W with crossover set to 100 Hz @ 12 dB/Octave)
 Recommended Amplifier Requirements 10 – 100 W
Drive Unit Complement  3 x 3" C-CAM cone bass-mid drivers
1 x 25 mm (1") C-CAM Gold Dome tweeter
Crossover Recommendation using AVR/Processor  100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Overall Dimensions  385 x 140.5 mm
 Overall Depth (Including Grille) 54.25 mm
Cut-Out Dimensions  346 x 101 mm
Mounting Depth 50 mm
Connection Gold Plated Sprung push terminals – For bare wire connection up to 4 mm2
Fixing Type 6 position Tri-Grip dog leg fixings
Construction Material Mineral-filled ABS Plastic, RoHS2 Compliant. Painted steel grille
Weight 1.4 kg (3 lb 2 oz)
Pre-Construction Bracket WB3 Pre-Construction Bracket (Dark Blue)
