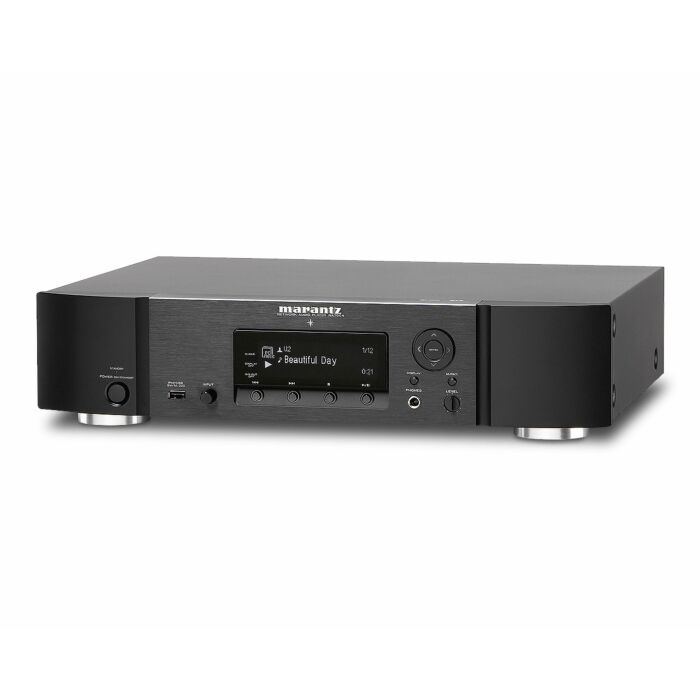

Marantz NA7004 internet Radio Tuner and DAC

Marantz NA7004 internet Radio Tuner and DAC

Sorry, This product is no longer available



Marantz NA7004 internet Radio Tuner and DAC

If you have music stored on your computer or an external network hard drive, the Marantz NA7004 is the best way to hear it in all it's glory.

Audiophile construction and dedicated components ensure your DLNA1.5 streamed music is treated with utmost care. Marantz HDAM-S2 output modules containing audiophile components together with an over specified, regulated power supply help your digital music sound as the studio intended.

iPod owners can connect their iPod/ iPhone to the digital USB port, with all D to A conversion taken care of by the high end internal CD4398 DAC.

Additional optical and coaxial digital inputs are available so that other music sources can be connected including Sonos, games consoles, DAB radio tuners and CD players.

Radio fans will be thrilled to hear that Internet radio, AM, FM, DAB and DAB+ are all available via the very simple front panel display. If sound quality matters to you, then your digital music will sound simply amazing.



iPod/iPhone compatible USB input
USB type B for PC (back)
Sample rate USB In 96kHz/24-bit
Analogue Out 1
Ethernet port
DAB terminal (1F)
FM antenna
Digital Inputs: Coaxial/Optical o
Digital Outputs: Coaxial/Optical
Sample rate digital In 192kHz/24-bit
M-XPort for RX101
Marantz remote bus


Streaming audio frpm PC
Internet radio
USB Audio (front)/Made for iPod/Works with iPhone
DAC operation mode:USB B type/Coax/Optical
DLNA certified  (v1.5)
Compatible files: MP3/WMA/AAC/WAV/FLAC
Control: Web
HDAM version HDAM & HDAM-SA2
El Power transformer
High Grade Audio Components
Customized Components
Symmetric circuit layout


D/A Conversion Multi-bit, Delta-Sigma
Digital Filter CS4398
Noise Shaper CS4398
Low Pass Filter STage HDAM-SA2
Output Buffer HDAM-SA2
Headphone amplifier NJM2068
Receiving Range (Band III/Band L)
Signal to Noise ratio (mono/stereo) 90dB
Total Harmonic Distortion 0.2%
Frequency response 20Hz-20kHz
Stereo Seperation 75dB
Receiving Range (Band III/Band L) o/-
Signal to Noise ratio (mono/stereo) 90dB
Total Harmonic Distortion 0.2%
Frequency response 20Hz-20kHz
Stereo Seperation 75dB
Frequency Range 87.5-108MHz
Signal to Noise ratio (mono/stereo) 65/60dB
Total Harmonic Distortion (mono/stereo) 0.8/1.0%
Frequency Response 50Hz - 15kHz
Channel Selectivity (FM) 50dB
Usable Sensitivity IHF 1.8 μV / 16.4 dBf
Stereo Seperation 42dB
Extra metal plate for chassis strengthing
Headphone socket
Dimensions W x H x D 440 x 106x 353mm
Weight 6.5kg
