Marantz NR1604 slimline AV receiver
Free UK Delivery
Discontinued

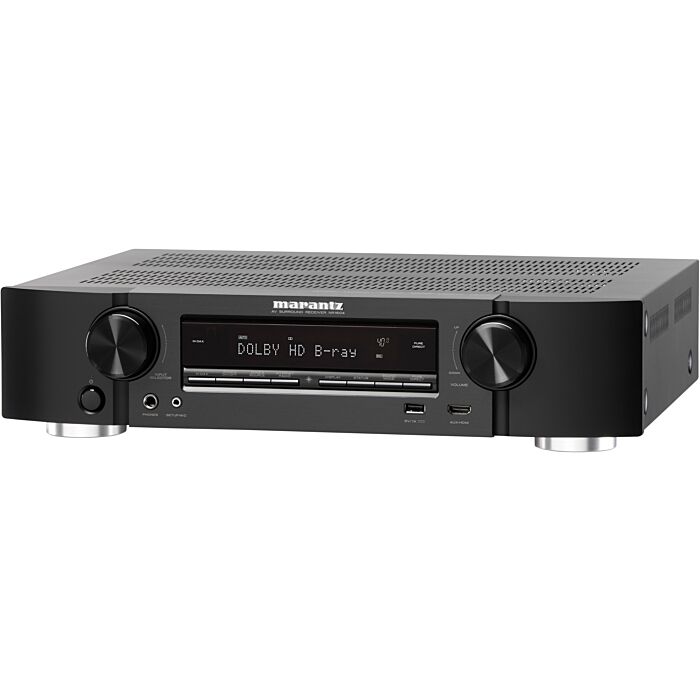

Marantz NR1604 slimline AV receiver
If you're in a situation where you need a great sounding and high quality home cinema AV receiver, but require additional space or a different style of aesthetics, then you should seriously consider Marantz's slimline NR1604 AV receiver as a solution. Even though it's pleasantly slim, it still brings the same punch as its bigger siblings, offering exceptional, seven channel surround sound from its 90 watts per channel. The NR1604 doesn't just deliver spectacular audio however, it also offers remarkable video quality as well, due to its 4k pass-through abilities, GUI overlay, as well as 4K scaling, giving yu future proofing should you decide to change your TV for a 4K model in the future. The seven power amp channels allow you to either run a 7.1 surround speaker system, or a 5.1 speaker system plus a stereo loudspeaker pair in a different room.
This is not the only change present within the NR1604, it also includes more HDMI and component video in/out ports as well as offering multiroom/ multisource facilities without needing another amplifier. Also, despite being a slim-line receiver, it shows off the same networking facilities for audio streaming as its standard/larger-sized relatives. With the NR1604, you also have access to Internet radio, AirPlay from your Apple gadgets (as well as an iPod-digital compatible USB input).
Setting up the unit is simple, with help from the NR1604's advanced colour GUI, Set-up Assistant, Audyssey MultEQ and mic - so you don't even need to touch the manual, just follow the instructions on screen.
Excellent sound quality in both music and cinema reproduction is assured, thanks to the discreet component amplifier construction design employed - most similar products in this class employ an inferior sounding chip solution, for reasons of low cost and ease of manufacture.
• 7channel discrete power amplifier, 90 W per channel
• Dynamic Volume and Dynamic EQ
• HDMI: 6+1 in / 1out (3D, ARC, Deep Color)
• Analogue & HDMI Up conversion to 4k
• Network Audio and JPEG streaming
• MP3, WAV, AAC, FLAC, WMA, Lossless, FLAC192/24 (HD)
• Gapless Playback
• Spotify*, last.fm*, Flickr, Internet Radio support
• iPod/iPhone compatible USB, iPad charging
• New Marantz Remote App for iOS and Android devices
Marantz NR1604 slimline AV receiver
FEATURES NR1604
MULTICHANNEL SURROUND
DTS HD Master / DTS 5.1 / DTS ES / DTS 96/24 • / • / • / •
Dolby Digital Plus / Dolby TrueHD / Dolby Digital EX / DPL IIz • / • / • / •
Multichannel Stereo •
Compressed audio Enhancer: MDAX2 •
NETWORK
DLNA Certified • (v1.5)
Lossy formats MP3 / WMA / AAC • / • / •
Lossless formats FLAC / ALAC / WAV • / • / •
FLAC HD 192/24 •
WAV 192/24 •
ALAC 96/24 •
Gapless playback • (FLAC, WAV)
Photo streaming (JPEG) •
AirPlay audio streaming •
Windows PlayTo / Windows 8/RT compatible • / •
Internet Radio (vTuner) •
Spotify* •
last.fm* •
Compatible with Remote APP for Smart Phones Android/iOS
Ethernet •
OTHERS
Bluetooth audio via RX101 optional
Auto speaker setup by microphone Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume • / •
Video conversion CVBS > HDMI;
Comp > HDMI
Videoprocessing >1080p, 4k
HDMI path though on stand-by •
3D video pass through •
Audio Return Channel •
On Screen Display: Advanced GUI •
GUI overlay on HDMI •
Setup Assistant (English, German, French, Spanish, Italian,
Dutch, Swedish, Polish, Russian)
•
Variable cross over •
Multiroom zones 1
Optimized Bass Redirection •
INPUTS/OUTPUTS
VIDEO
Composite In / Out 3 / 1
Component In / Out 2 / 1
HDMI In / Out 6+1 / 1
AUDIO
Analogue In / Out 3 / 0
Digital Optical In / Out 1 / 0
Digital Coaxial In / Out 1 / 0
Multichannel Pre Out • (2.1)
Subwoofer Out 1
Zone audio preout •
OTHER
M-XPort for RX101 •
Speaker A / B •
Height speaker terninal Speaker B or Heigth
Bi-amp drive (5.1 ch setting) •
Multi-Room Speaker Terminal Surround Back
assignable
Marantz remote bus •
Network: (IP-control / update) • / •
Front Inputs: HDMI / USB • / •
USB Audio / Made for iPod / Works with iPhone • / • / •
SPECIFICATIONS
Number of poweramps 7
Power Output per channel
6 ohm, 1 kHz, 1%, 1ch Drive 90 W
6 ohm, 1 kHz. 0.7%, 2ch Drive 70 W
8 ohm, 20 Hz - 20 kHz, 0.08%, 2ch Drive 50 W
Audio Signal to Noise Ratio 98 dB
FM Tuner •
GENERAL
Available colors: Black / Silver-Gold • / •
System Remote Control RC021SR
Power Consumption in W 220
Standby Consumption in W 0.2
Maximum Dimensions (W x D x H) in mm 440 x 367 x 105
Weight in kg 8.4
