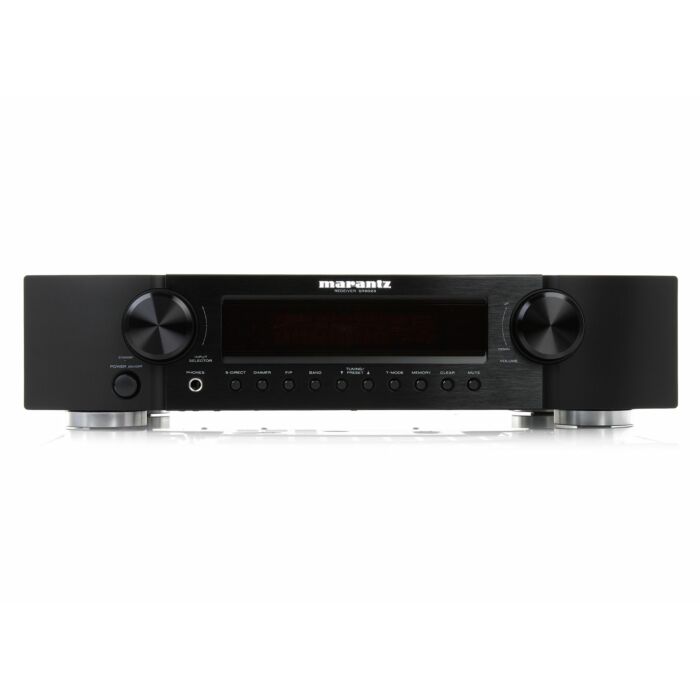

Marantz SR5023 stereo receiver

Marantz SR5023 stereo receiver

Sorry, This product is no longer available



The SR5023 stereo receiever from Marantz makes use of 2 x 80W and the new M1 Reference Style design. It's built and finished to the highly regarded expert standards you'd exect from any product produced by Marantz.  The slim alumium front boasts perfect balance, while the dimensions are identicle to the CD5003 and SA7003 - which gives you the option of creating a brilliant system from only two components.

Precise attention to detail and Marantz' refusal to compromise on construction, makes sure that faithfully captured excitement and emotional playback of your music is fulfilled to the best possible level. The SR5023 is an RDS stereo receiever that features both FM and AM reception, as well as 50 random presets and a powerful amplifier as its centre-piece.

For vinyl lovers, the unit also features a premium quality phono MM preamp. A subwoofer output and a pairs of screw type speaker terminals.

Features Linear Drive Power Supply
Power Transformer:  El
Symmetric PCB Layout
 Bass / Treble
Source Direct
Phono EQ
Standby Mode
Full dot matrix display
Display Off
Display dimmer
Tuner: FM / MW
Presets     50 (FM / AM)
Auto Tuning
RDS: PTY / PS / RT
Station Naming
Connections Audio Inputs     6
Phono Input: MM
Audio Outputs     1
Subwoofer Out
FM Antenna
AM Antenna
D-Bus In/Out
Speaker Terminal: Screw
Headphone Out
I-Pod input docking station
Specifications Power Output (8 / 6 Ohm RMS)     80 / 100 W
Frequency response     10 Hz - 50 kHz (+0,-1 dB)
Total Harmonic Distortion     0.03%
Damping Factor     100
Input Sensitivity: MM     2.5 mV / 47 kohm
Input Sensitivity: MC     -
Signal to Noise Ratio MM / MC     83 dB / -
Input Sensitivity: High level     200 mV / 20 kohm
Signal to Noise Ratio High Level     90 dB
 Dimensions W x D x H
440 x 367 x 105 mm
Weight 7.8kg
