Ortofon is a Danish manufacturer of high-quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable
A Moving Magnet phono cartridge is comprised of a tiny magnet, located at the end of the cantilever of the stylus that sits between two coils. One coil caters to the left aspect of the music, while the other is for the right - this allows for the stereo sound. This magnet vibrates between the two coils and induces a small electrical current within them in the process. Because the magnet is so small, it needs less tracking/downward force to correctly manoeuvre between the grooves of a vinyl record. A Moving Iron cartridge makes use of essentially the same construction but swaps the magnet for a tiny piece of iron or other light-weight and ferrous alloy. The iron is lighter and so reduces the necessary tracking force even further.
Moving Magnet is the most common type of phono cartridge, so many integrated amplifiers now feature a Moving Magnet phono stage and many manufacturers, such as Ortofon design and construct a wide range of MM cartridges with varying levels of quality. While every MM cartridge makes use of this fundamental construction, the way that this is implemented within a cartridge varies as do the materials used, allowing for differing qualities and a unique sound-signature depending on the brand and model.

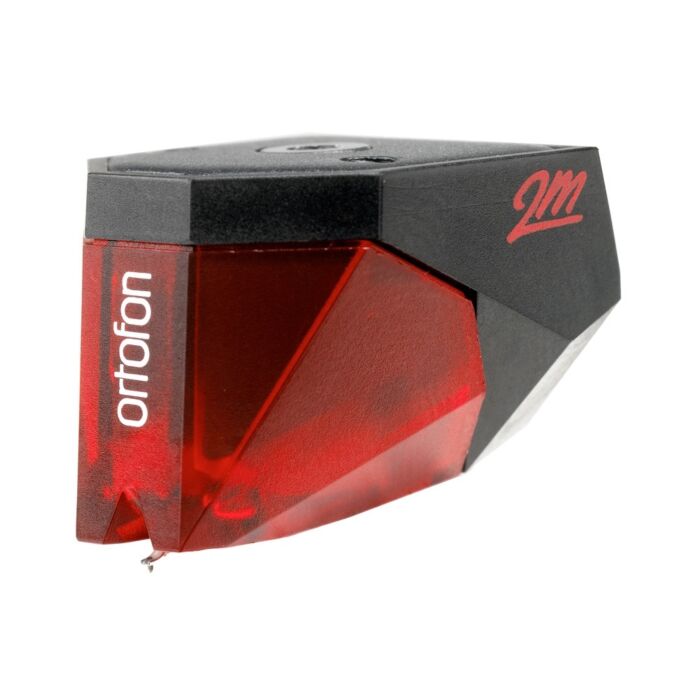

The 2M Red is one of our most popular cartridges, due to its exceptional quality and accessible price point. The name comes from the type of cartridge that it is, two M's - MM, which stands for Moving Magnet. The 2M Red is the entry level 'colour' model in the 2M series and features the same Ortofon-specific split pole pins found in all models in the 2M range. This innovative invention allows moving magnet cartridges to perform with a flat frequency response, similar to how a moving coil cartridge operates.
The design of the 2M Red has been optimised in order for the cartridge to be easily mounted, while the weight and size of the cartridge should fit most common turntables found on the market today. The 2M Red from Ortofon offers a high-quality performance, capable of relaying vinyl sound through a large assortment of playback systems, and with a wide range of phono pre-amplifier, making it a flexible and enjoyable sonic experience.
Output voltage at 1000 Hz, 5cm/sec. 5.5mV Channel balance at 1 kHz 1.5dB Channel separation at 1 kHz 22dB Channel separation at 15 kHz 15dB Frequency range at - 3dB 20Hz - 22,000Hz Frequency response FIM distortion at recommended 20-20.000 Hz + 3/ - 1 dB Tracking ability at 315Hz at recommended tracking force *) 70 µm Compliance, dynamic, lateral 20 µm/mN Stylus type Elliptical Stylus tip Radius r/R 8/18 µm Tracking Force Range 1,6-2,0g (16-20 mN) Tracking force, recommended 1,8 g (18 mN) Tracking Angle 20° Internal impedance, DC resistance 1.3 kOhm Internal Inductance 700 mH Recommended Load Resistance 47 kOhm Recommended load capacitance 150-300 pF Cartridge colour Black/Red Cartridge weight 7.2g
