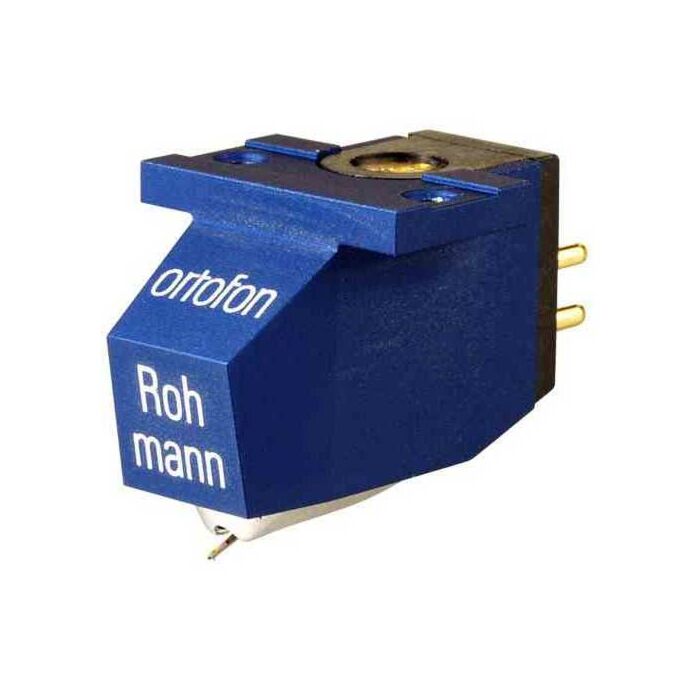

DetailsNamed after a distinguised ex-Managing Director of Ortofon, the Ortofon MC Rohmann his a high performance moving coil cartridge designed for the most discerning of music lovers. The body is made from low resonance blue anodised aluminium for superb neutrality of tone with tapped threads to facilitate easy installation in your tonearm. The nude orto-line diamond stylus tracks securely and offers extremely low distortion even on massed choir, brass or tympani. A superb cartridge which deserves a high end phono stage.
Specification Output voltage at 1000 Hz, 5cm/sec. 250 µV
Channel balance at 1 kHz < 1,5 dB
Channel separation at 1 kHz > 25 dB
Channel separation at 15 kHz > 15 dB
Frequency range at - 3dB 20-55.000 Hz
Frequency response 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 12 µm/mN
Stylus type Nude "Orto Line"
Stylus tip radius r/R 4,5/100 µm
Tracking force range 2,2-2,7 g (22-27 mN)
Tracking force, recommended 2,5 g (25 mN)
Tracking angle 20°
Internal impedance, DC resistance 6 Ohm
Recommended load impedance > 10 Ohm
Cartridge body material Aluminium, milled from solid block
Cartridge colour Royal blue
Cartridge weight 9 g
*) Typical value
