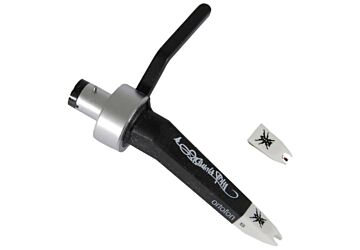

Ortofon QBert Concorde Cartridge

Ortofon QBert Concorde Cartridge

Sorry, This product is no longer available

Description

Details

The QBert has a supreme ability to trace the grooves of your records and it's tailored specifically for scratch DJing. Due to it's enormous output, it is perfect for scratching with all music genres with excellent reproduction of deep bass frequencies.
Specification

TECHNICAL DATA
 CONCORDE Q.BERT
Output voltage at 1000 Hz,
5cm/sec.
 11 mV

Channel balance at 1 kHz
 1,5 dB

Channel separation at 1 kHz
 22 dB

Channel separation at 15 kHz
 -

Frequency range
 20-20.000 Hz

Frequency response
 20-18.000 Hz -3 dB

FIM distortion at recommended
tracking force, DIN 45.542
  1%

Tracking ability at 315Hz at
recommended tracking force
 90 µm

Compliance, dynamic, lateral
 12 µm/mN

Stylus type
 Spherical

Stylus tip radius
 R 18 µm

Equivalent stylus tip mass
 0,6 mg

Tracking force range
 2,0-4,0 g (20-40 mN)

Tracking force, recommended
 3,0 g (30 mN)

Tracking angle
 20∞

Internal impedance, DC resistance
 1680 Ohm

Internal inductance
 920 mH

Recommended load resistance
 47 kOhm

Recommended load capacitance
 200-400 pF

Cartridge colour, body/stylus
 Black/White

Cartridge weight
 18,5 g

Replacement stylus unit
 Q.Bert
